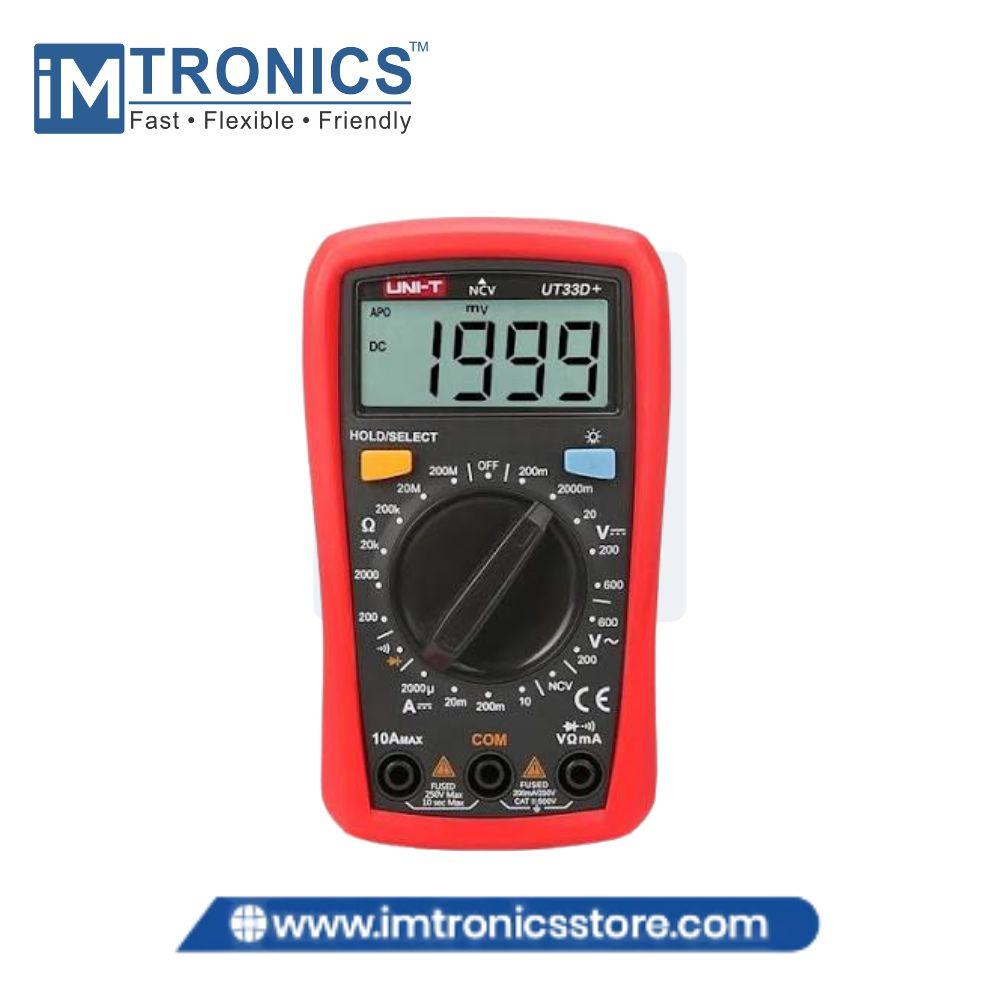

The UNI-T UT33D+ is a compact 2000-count digital multimeter designed for electrical and electronics testing. It supports DC/AC voltage, DC current, resistance, diode and continuity testing, and includes NCV (Non-Contact Voltage) detection. The UT33D+ uses manual ranging and is rated for CAT II 600V operation. UNI-T also specifies 2-meter drop protection for the UT33+ series.
| Parameter | Specification |
|---|---|
| Brand | UNI-T |
| Model | UT33D+ |
| Product Type | Digital Multimeter |
| Display Count | 2000 Counts |
| Range Selection | Manual |
| DC Voltage | 200mV / 2V / 20V / 200V / 600V |
| DC Voltage Accuracy | ±(0.5% + 2) |
| AC Voltage | 200V / 600V |
| AC Voltage Accuracy | ±(1.2% + 3) |
| DC Current | 2000µA / 20mA / 200mA / 10A |
| DC Current Accuracy | ±(1% + 2) |
| Resistance | 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ / 200MΩ |
| Resistance Accuracy | ±(0.8% + 2) |
| NCV Detection | Yes |
| Diode Test | Yes |
| Continuity Buzzer | Yes |
| Auto Power Off | Yes |
| Safety Rating | CAT II 600V |
| Drop Test | 2 m |
| Power Supply | 2 × 1.5V R03 (AAA) Batteries |
| Display Size | 66 × 51 mm |
| Product Size | 134 × 77 × 47 mm |
| Weight | Approx. 206 g (with batteries) |
| Color | Red & Grey |
