SKU code: #IMT01090
Category Name: ESD
₹34,444
You save ₹3,444(10% off)
Inclusive of all taxes
₹34,444
You save ₹3,444(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

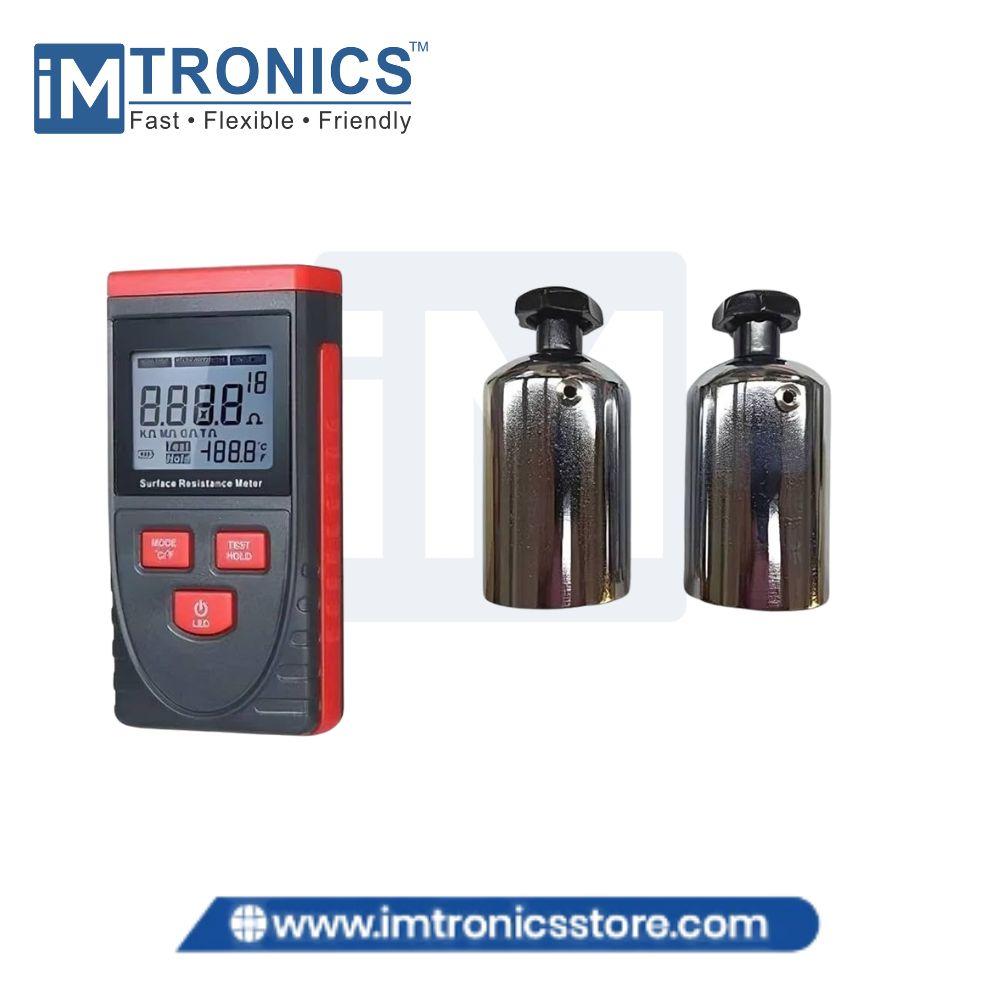

Surface Resistivity Meter - Z2033 (With Electrode) is a wide-range digital instrument designed for measuring surface resistivity and resistance between two points on various surfaces and materials. It also supports surface-to-ground measurement and ambient temperature measurement. The instrument is suitable for testing packaging materials, component storage bags and trays, workbench surfaces, table and floor mats, and other conductive, dissipative, and insulating materials. The external electrode configuration can be used for measurements on suitable test surfaces.
| Parameter | Specification |
|---|---|
| Product Name | Surface Resistivity Meter - Z2033 (With Electrode) |
| Model | Z2033 |
| Product Type | Surface Resistivity Meter |
| Measurement Range | 10² to 1.5 × 10¹² Ω/sq |
| Resolution | 0.1 Decade |
| Measurement Functions | Surface Resistivity / Resistance Between 2 Points / Surface-to-Ground |
| Ambient Temperature Measurement | 0°C to 50°C |
| Measurement Accuracy | Resistance ±10%; Temperature ±2°C |
| Display Type | LCD Backlit Display |
| Data Hold Function | Yes |
| Power Supply | 9 V DC Battery |
| Auto-Off Function | Yes |
| Battery Condition Indicator | Yes |
| Dimensions | 125 × 65 × 35 mm |
| Weight | 160 g |
| Accessories Included | 1 m Grounding Cord & Carrying Case |
| External Electrode | Included with this configuration |
| Calibration Traceability | To National Standards |
| Conformance | D257 |
| Operation | Portable / Handheld |
