SKU code: #IMT00682
Category Name: SMT Spare
₹1,722
You save ₹172(10% off)
Inclusive of all taxes
₹1,722
You save ₹172(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

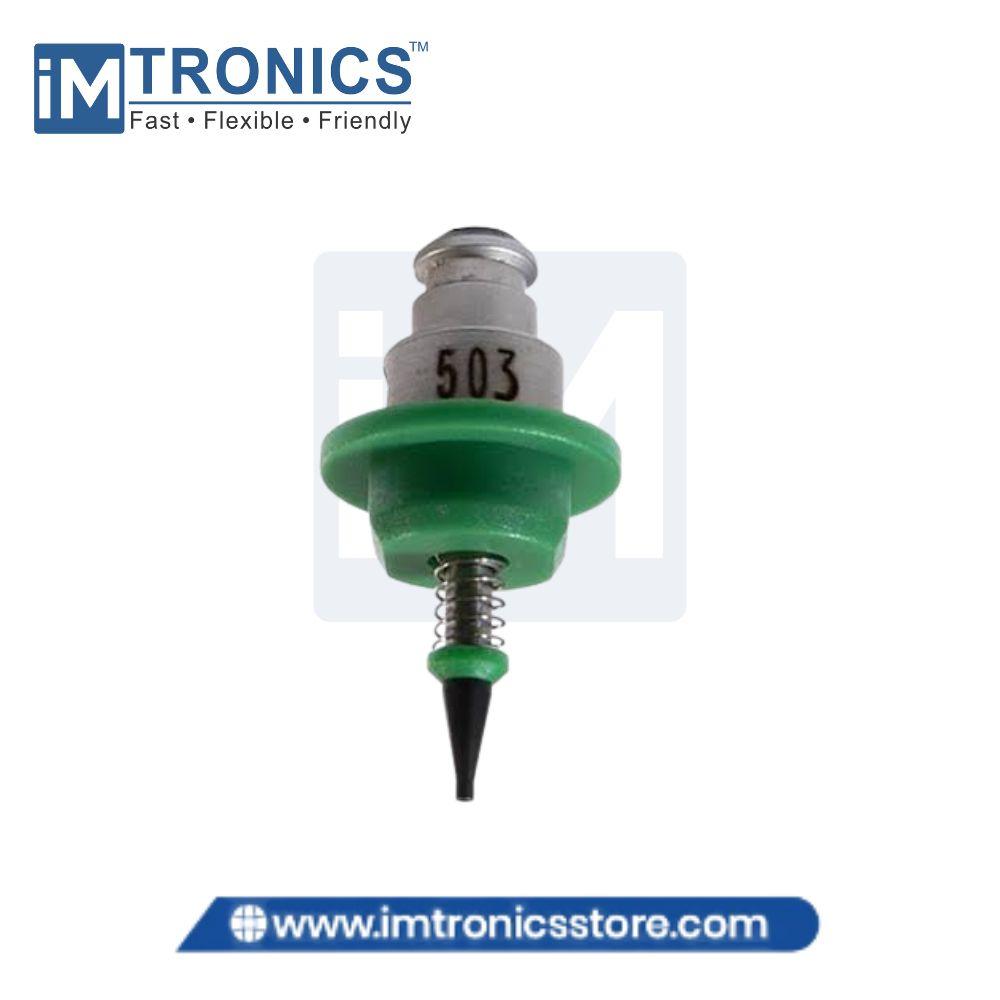

The JUKI 503 Nozzle is a precision vacuum pick-up nozzle used in JUKI SMT pick-and-place machines. It features a Ø1.0 mm outer diameter and Ø0.6 mm inner diameter and is commonly used for handling 1608 (0603 imperial) and similar small SMD components during automated PCB assembly.
| Parameter | Specification |
|---|---|
| Brand | JUKI |
| Product Name | JUKI 503 Nozzle |
| Product Type | SMT Pick & Place Nozzle |
| Nozzle Number | 503 |
| Tip Outer Diameter | Ø1.0 mm |
| Tip Inner Diameter | Ø0.6 mm |
| Operating Method | Vacuum Pick-Up |
| Typical Component | 1608 (0603 Imperial) & Similar SMD Components |
| Machine Compatibility | JUKI SMT Pick & Place Machines |
| Compatible Series | JUKI Series |
| Primary Function | Component Pick-Up & Placement |
| Application | SMT PCB Assembly |
