I-PULSE P033 Nozzle

SKU code: #IMT00660

Category Name: SMT Spare

₹4,150 (10% off)

MRP

₹4,611

You save ₹461(10% off)

Inclusive of all taxes

₹4,150 (10% off)

MRP

₹4,611

You save ₹461(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 4

Estimate delivery times: 5-7 days .

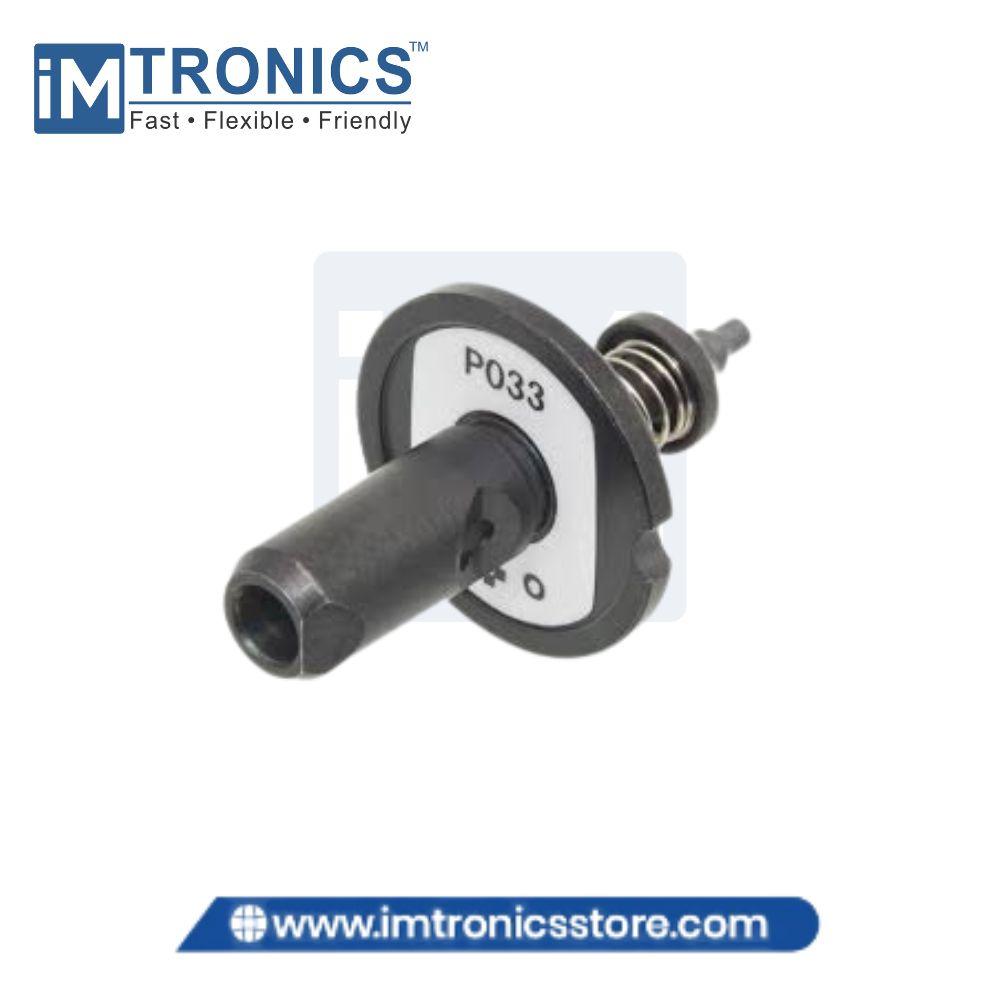

I-PULSE P033 Nozzle

The I-PULSE P033 Nozzle is a precision buffer-type SMT pick-and-place nozzle used for vacuum pick-up and placement of small SMD components. It features a ceramic tip with approximately Ø1.3 mm outer diameter and Ø0.7 mm inner diameter. It is commonly used with I-PULSE M6, M7 and related P-series machines.

Specifications

Parameter	Specification
Product Name	I-PULSE P033 Nozzle
Nozzle Model	P033
Product Type	SMT Pick & Place Nozzle
Part Number	LC6-M7716-002
Nozzle Type	Buffer Nozzle
Tip Outer Diameter	Ø1.3 mm
Tip Inner Diameter	Ø0.7 mm
Tip Material	Ceramic
Operating Method	Vacuum Pick-Up
Typical Component Size	1608
Machine Compatibility	I-PULSE M6 / M7 / M8 Series
Primary Function	SMD Component Pick-Up & Placement
Application	Automated SMT PCB Assembly

Applications

SMD Component Placement – Used for precise pick-up and placement of surface-mount components during automated SMT production.
1608 Component Handling – Commonly specified for handling 1608-size chip components.
PCB Assembly – Supports accurate component mounting on printed circuit boards.
SMT Pick & Place Machines – Suitable for compatible I-PULSE P-series mounting equipment.
Nozzle Replacement – Used to replace worn or damaged compatible P033 nozzles.
High-Precision SMT Production – Ceramic construction supports reliable component pickup and accurate placement.
