I-PULSE P034 Nozzle

SKU code: #IMT00661

Category Name: SMT Spare

₹4,150 (10% off)

MRP

₹4,611

You save ₹461(10% off)

Inclusive of all taxes

₹4,150 (10% off)

MRP

₹4,611

You save ₹461(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 7

Estimate delivery times: 5-7 days .

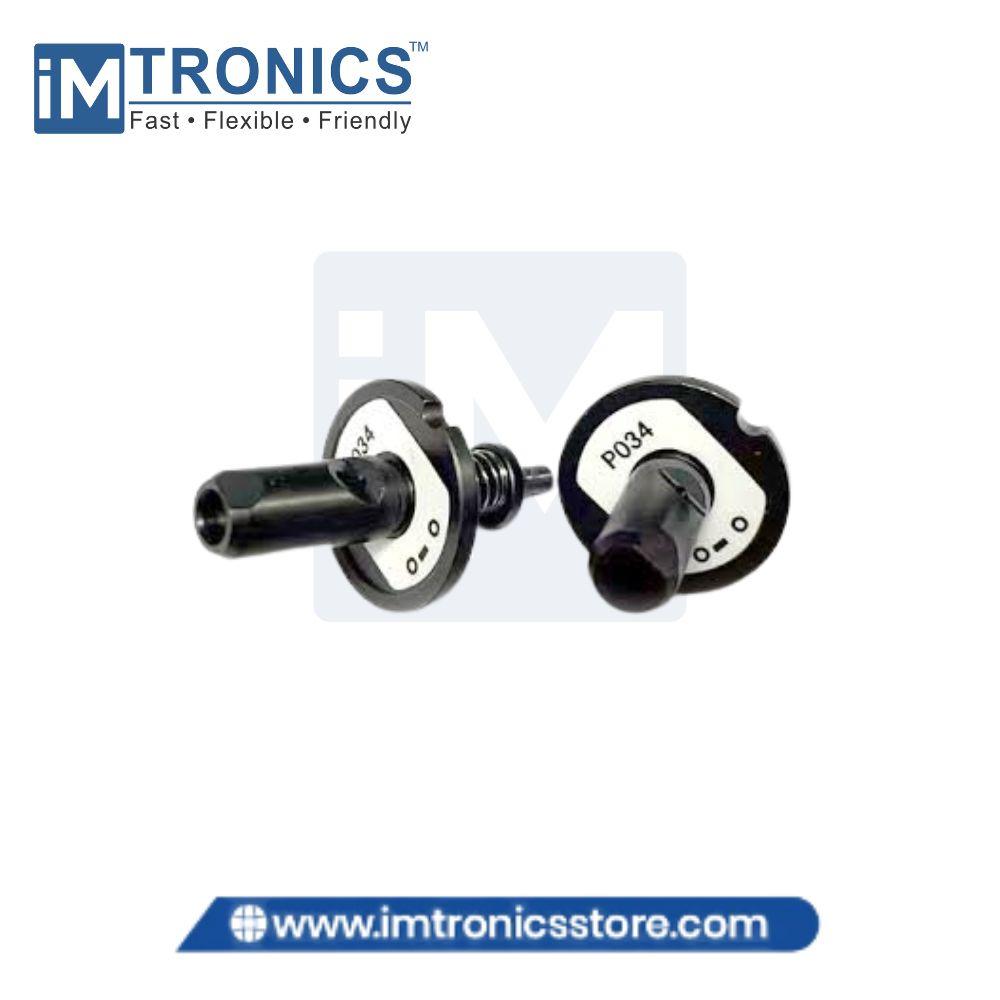

I-PULSE P034 Nozzle

The I-PULSE P034 Nozzle is a precision buffer-type SMT pick-and-place nozzle designed for I-PULSE mounting machines. It uses a ceramic tip with approximately Ø1.8 mm outer diameter and Ø1.2 mm inner diameter, providing controlled vacuum pickup for SMD components. It is commonly listed for the I-PULSE M6, M7 and M8 series.

Specifications

Parameter	Specification
Product Name	I-PULSE P034 Nozzle
Nozzle Model	P034
Product Type	SMT Pick & Place Nozzle
Part Number	LC6-M7718-002
Nozzle Type	Buffer Nozzle
Tip Outer Diameter	Ø1.8 mm
Tip Inner Diameter	Ø1.2 mm
Tip Material	Ceramic
Operating Method	Vacuum Pick-Up
Typical Component Range	2012–3216
Machine Compatibility	I-PULSE M6 / M7 / M8 Series
Primary Function	SMD Component Pick-Up & Placement
Application	Automated SMT PCB Assembly

Applications

SMD Component Placement – Used for accurate pick-up and placement of surface-mount components during automated assembly.
2012–3216 Components – Suitable for handling components within the commonly specified 2012 to 3216 size range.
SMT Pick & Place Machines – Designed for use with compatible I-PULSE mounting equipment.
PCB Assembly – Supports automated component mounting during PCB manufacturing.
Nozzle Replacement – Suitable as a replacement for worn or damaged compatible P034 nozzles.
High-Precision SMT Production – Helps maintain stable vacuum pickup and accurate component positioning.
