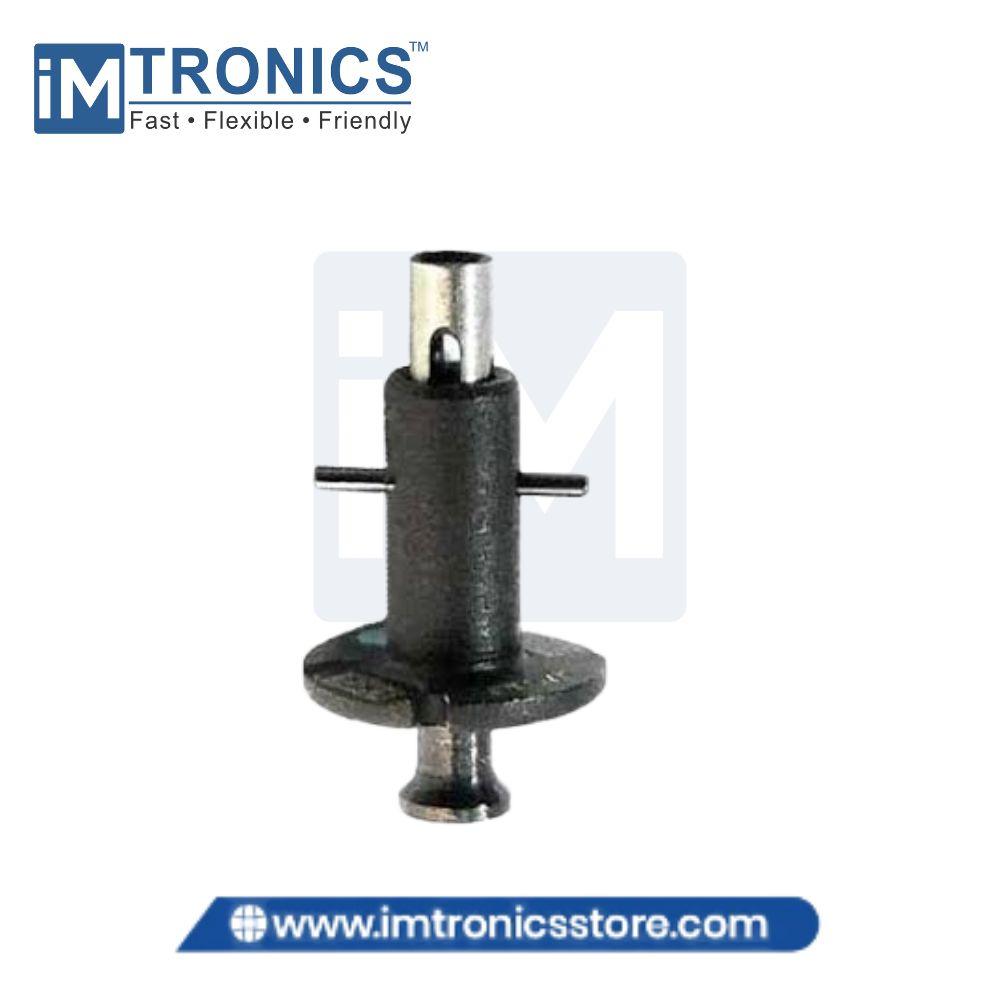

Fuji NXT H24 Nozzle 1.8mm

The Fuji NXT H24 Nozzle 1.8mm is a pick-and-place nozzle designed for compatible FUJI NXT H24 placement heads. It uses vacuum suction to pick electronic components from feeders and accurately place them onto the PCB during SMT assembly. The 1.8mm nozzle size is suitable for compatible components based on their dimensions, shape, and pickup surface.

Specifications

Applications

• SMT Component Placement – Used for picking and placing compatible SMD components during automated PCB assembly.
• FUJI NXT Production Lines – Designed for use with compatible FUJI NXT H24 placement-head configurations.
• Vacuum Component Pickup – Uses vacuum suction to securely pick compatible components from feeders before placement.
• Precision PCB Assembly – Supports accurate component positioning during high-speed SMT production.
• SMD Component Handling – Suitable for compatible electronic components based on package size, shape, weight, and available pickup area.
• Nozzle Replacement & Maintenance – Can be used to replace a worn or damaged compatible nozzle to maintain reliable pickup and placement performance.
• Electronics Manufacturing – Suitable for SMT production environments manufacturing PCB assemblies for consumer, industrial, automotive, and other electronic products.
