SKU code: #IMT00850
Category Name: Soldering & Rework Station
₹327,777
You save ₹32,778(10% off)
Inclusive of all taxes
₹327,777
You save ₹32,778(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

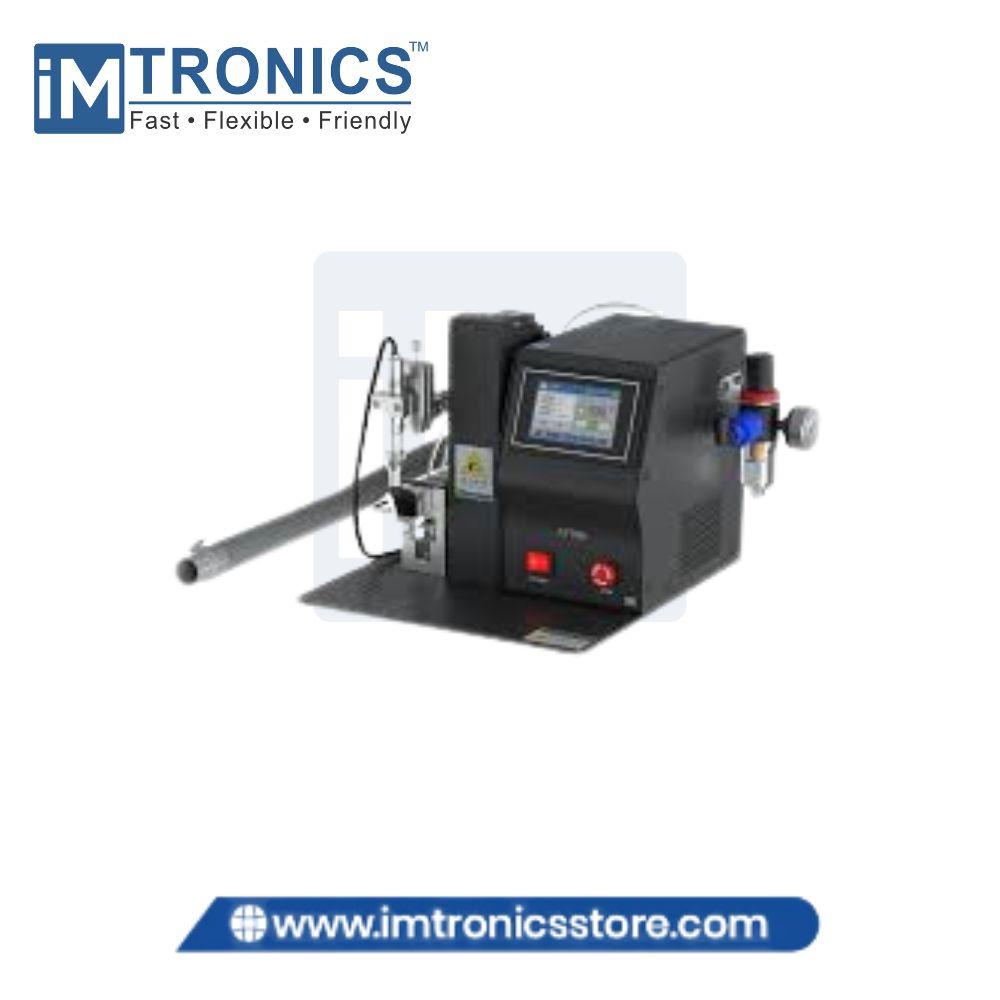

The ATTEN ZT-661-200H Single-Axis Semi-Automatic Soldering Robot is designed for repetitive soldering operations where soldering positions remain fixed. It combines PLC touch-screen control, automatic tip cleaning, fixture-based positioning, and foot-switch/automatic control modes to improve consistency and productivity in batch soldering applications. ATTEN lists it for standardized through-hole soldering tasks such as connector and flat-cable soldering.
| Parameter | Specification |
|---|---|
| Product Name | Single Axis Semi-Automatic Soldering Robot |
| Brand | ATTEN |
| Model | ZT-661-200H |
| Input Voltage | AC 220–240V, 50/60Hz / AC 110–120V, 60Hz |
| Rated Power | 250W ±10% |
| Soldering Handle Power | ≥200W |
| Temperature Range | 80°C – 500°C |
| Temperature Compensation | ±50°C |
| Control System | PLC Touch Screen |
| Quick Parameters | Supports 10 Custom Parameter Sets |
| Handle Model | ZP-200HG |
| Heater Model | HS-200H |
| Tip Cleaning | Automatic Air-Blow Cleaning |
| Operating Modes | Foot Switch & Automatic Control |
| Communication | RS-485 Interface |
| Fixture | Replaceable Fixture for Different Products |
| ESD Protection | ESD Safe |
| Application | Repetitive & Fixed-Position Soldering Operations |
₹327,777
You save ₹32,778(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
