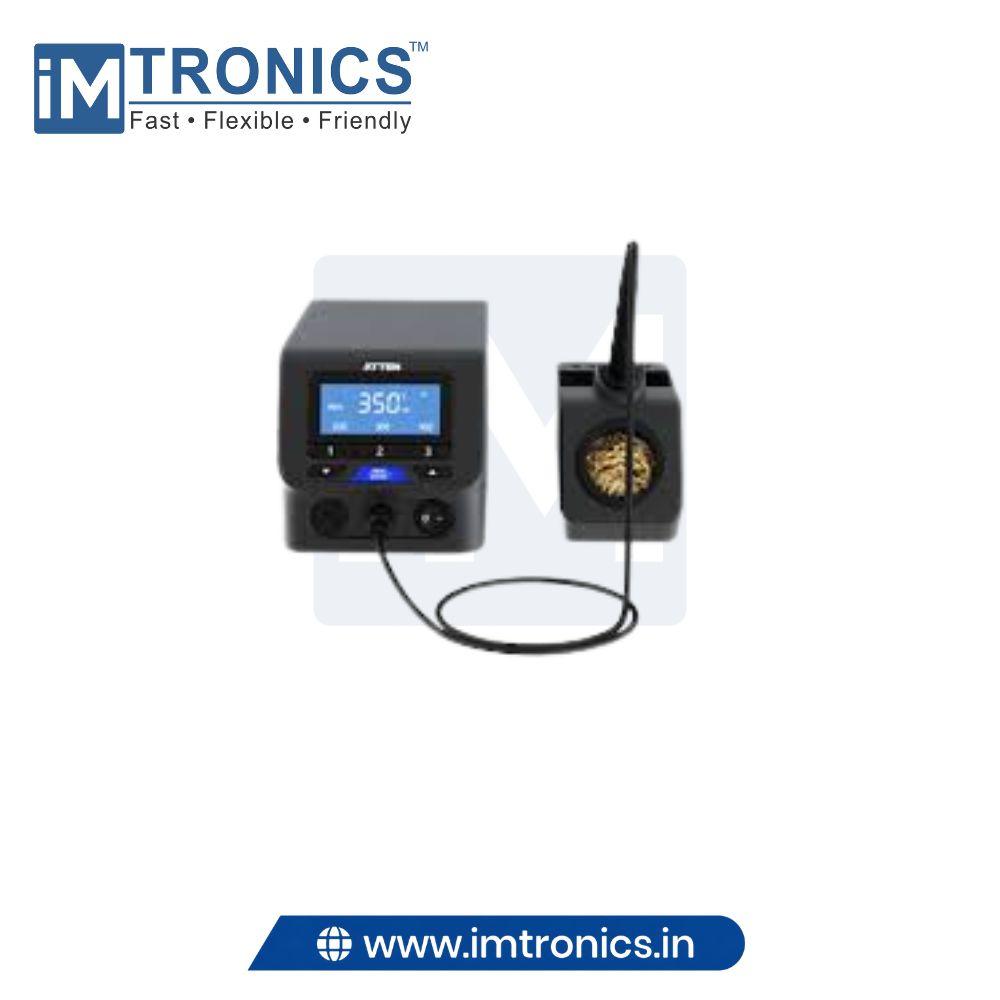

ATTEN ST-1203D is a 120W high-frequency soldering station designed for professional electronics assembly, production-line soldering, and rework applications. It uses high-frequency eddy-current heating for fast thermal recovery and stable soldering performance. The station features an LCD display, three temperature presets, adjustable standby/sleep functions, IR temperature calibration, and RS-485 communication for IoT integration.
| Parameter | Specification |
|---|---|
| Brand | ATTEN |
| Model | ST-1203D |
| Product Type | High-Frequency Soldering Station |
| Rated Handle Power | 120W |
| Input Voltage | AC 220–240V, 50/60Hz / AC 110–125V, 60Hz |
| Temperature Range | 80°C – 500°C |
| Heating Principle | High-Frequency Eddy-Current Heating |
| Display | LCD Display |
| Temperature Presets | 3 Preset Temperature Memories |
| Standby Mode | 1–60 Minutes Adjustable |
| Sleep Mode | 1–60 Minutes Adjustable |
| IR Temperature Calibration | Supported |
| Communication Interface | RS-485 |
| IoT Function | Supported |
| Soldering Handle | SP-H120 |
| Handle Power | ≥120W |
| Heating Element | HS-3120H |
| Compatible Tip Series | ATTEN T120 Series |
| Standard Tip | T120-B |
| Tip-to-Ground Voltage | ≤2mV |
| Handle Cable Length | 120 cm |
| Host Dimensions | 200 × 125 × 120 mm |
| Host Weight | Approx. 3.3 kg |
| Application Area | Industrial Electronics Soldering & Rework |
