SKU code: #IMT00963
Category Name: Soldering & Rework Station
₹24,277
You save ₹2,428(10% off)
Inclusive of all taxes
₹24,277
You save ₹2,428(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
| Parameter | Specification |
|---|---|
| Brand | BAKON |
| Model | BK-3600 |

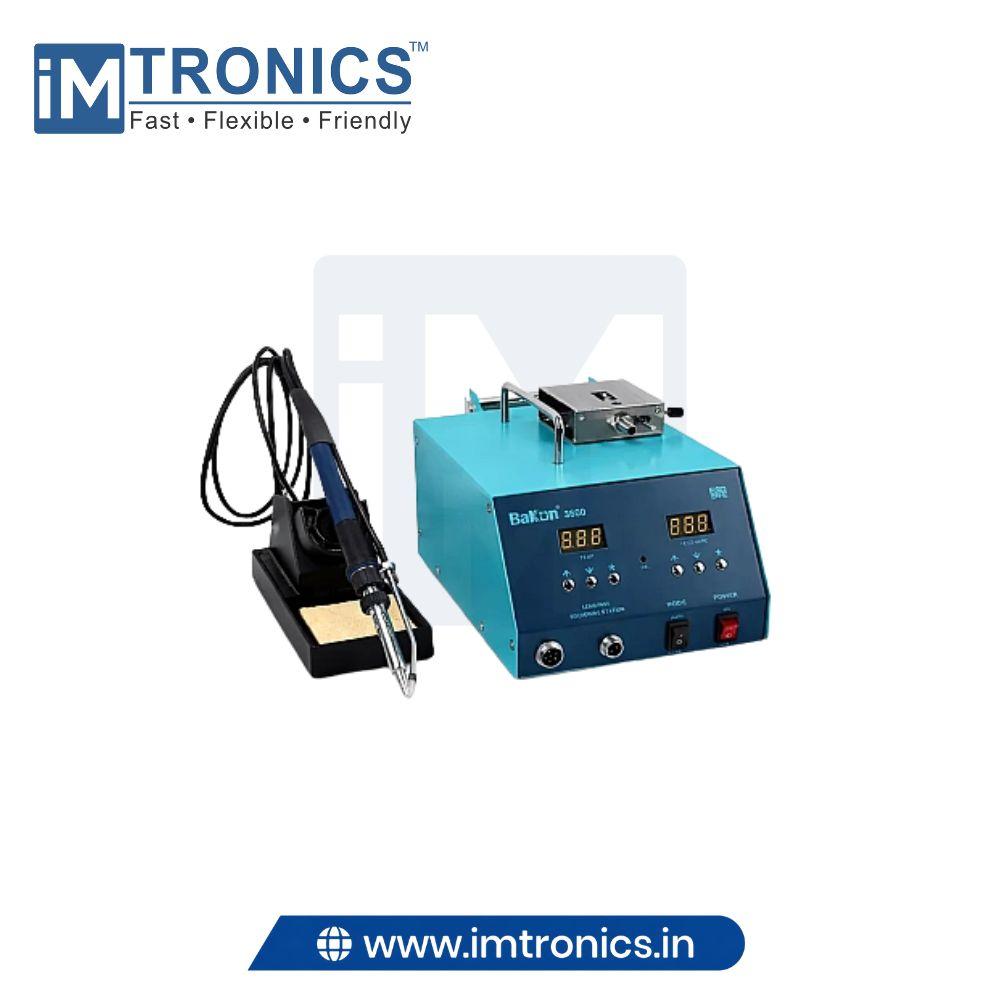

| Product Type | Soldering Station with Automatic Wire Feeder |
| Soldering Handle Power | 150W |
| Input Voltage | AC 220V |
| Output Voltage | 36V |
| Temperature Range | 50°C – 500°C |
| Temperature Stability | ±2°C (No Load) |
| Heating Technology | High-Frequency Heating |
| Temperature Control | Microcomputer / Digital Control |
| Soldering Handle | LF301 |
| Heating Element | VH300 |
| Compatible Tip Series | BAKON 500M Series |
| Wire Feeding Motor | Stepper Motor |
| Wire Feeding Modes | Manual / Semi-Automatic / Fully Automatic |
| Feeding Speed | Adjustable |
| Automatic Feeding Length | 0.7 – 655 mm |
| Feeding Interval Time | 0 – 10 Seconds |
| Wire Return Time | 0 – 1 Second |
| Compatible Solder Wire Diameter | 1.0 – 1.6 mm |
| Standard Wire Range | 1.2 – 1.6 mm |
| Tip-to-Ground Resistance | ≤2Ω |
| Tip-to-Ground Potential | ≤2mV |
| Auto Sleep | Supported |
| Foot Switch Operation | Supported |
| Dimensions | 262 × 170 × 146 mm |
| Net Weight | Approx. 6.2 kg |
| Application Area | Industrial Soldering, PCB Assembly & Production |
₹24,277
You save ₹2,428(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
