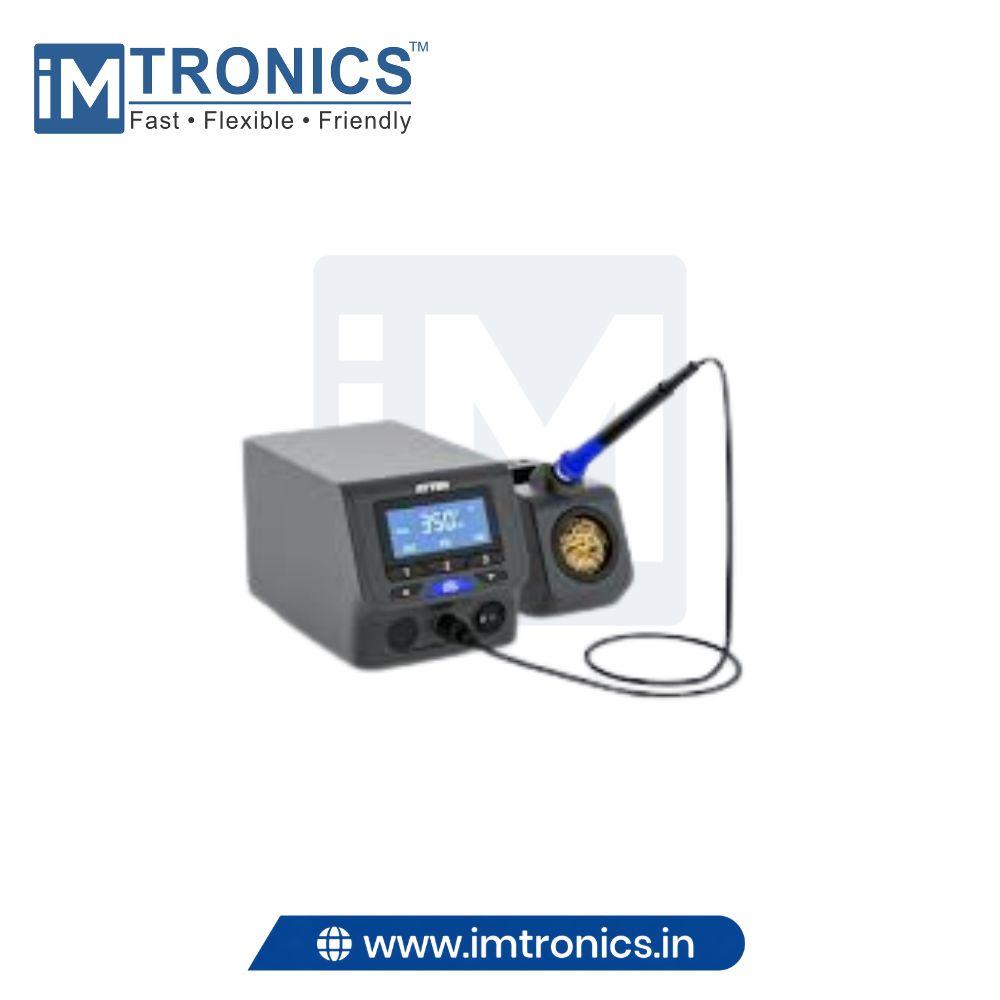

ATTEN ST-9003D is a 90W high-frequency soldering station designed for professional electronics assembly, industrial soldering, and rework. It uses high-frequency eddy-current heating for rapid temperature recovery and features an LCD display, three temperature presets, adjustable standby/sleep modes, IR temperature calibration, password protection, and an RS-485 communication interface for IoT integration.
| Parameter | Specification |
|---|---|
| Brand | ATTEN |
| Model | ST-9003D |
| Product Type | High-Frequency Soldering Station |
| Station Power Consumption | 110W |
| Soldering Handle Power | ≥90W |
| Rated Operating Voltage | AC 220–240V, 50/60Hz / AC 110–125V, 60Hz |
| Temperature Range | 80°C – 500°C |
| Heating Principle | High-Frequency Eddy-Current Heating |
| Display | LCD Display |
| Temperature Control | Digital Push-Button Control |
| Temperature Presets | 3 Preset Temperature Memories |
| Standby Mode | 1–60 Minutes (Default: 3 Minutes) |
| Sleep Mode | 1–60 Minutes (Default: 30 Minutes) |
| IR Temperature Calibration | Supported |
| Temperature Units | °C / °F |
| Communication Interface | RS-485 |
| IoT Function | Supported |
| Soldering Handle | SP-H090 |
| Heating Element | HS-3090H |
| Compatible Tip Series | ATTEN T300 Series |
| Standard Tip | T300-B |
| Tip-to-Ground Impedance | <2Ω |
| Tip-to-Ground Voltage | <2mV |
| Working Temperature | 0°C – 40°C |
| Working Humidity | <85% RH |
| Station Dimensions | 200 × 125 × 120 mm |
| Station Weight | Approx. 3 kg |
| Application Area | Industrial Electronics Soldering & Rework |
