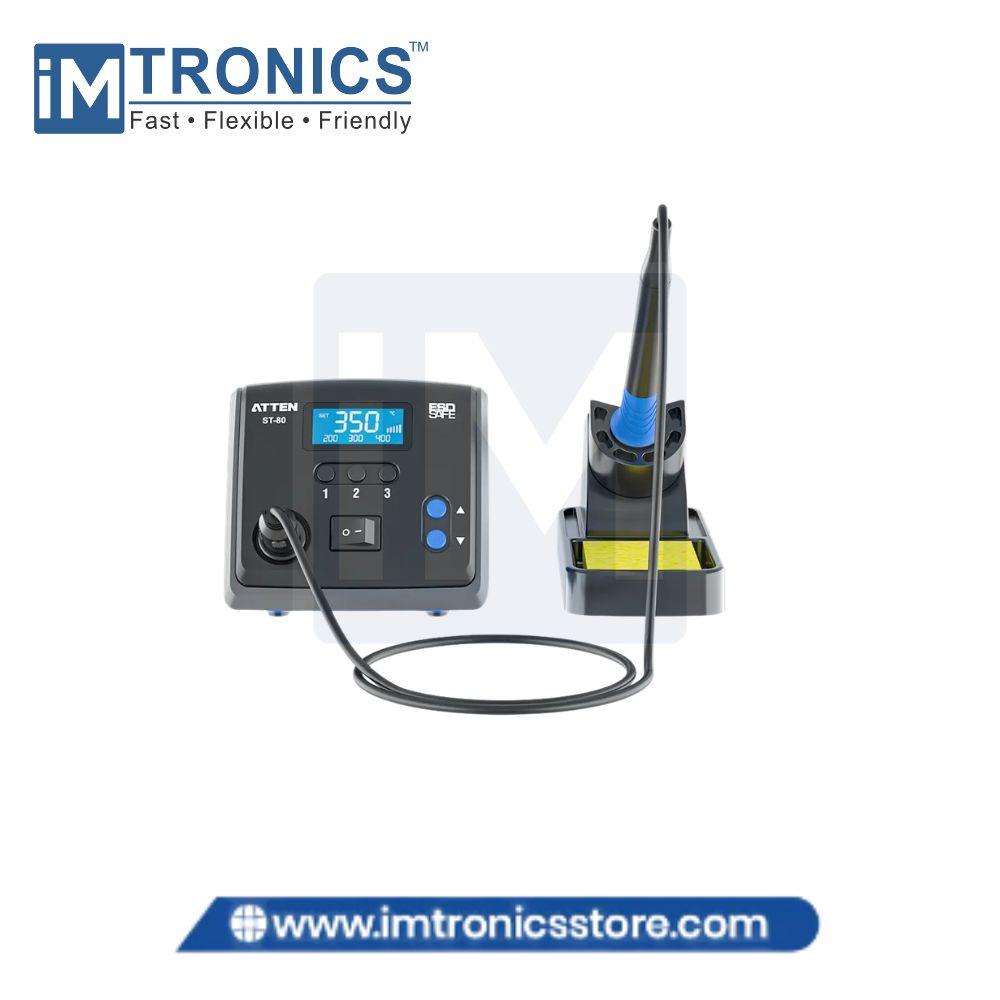

ATTEN ST-80 is an 80W intelligent digital soldering station designed for electronics assembly, maintenance, and rework. It features an LCD display, programmable temperature presets, automatic standby and shutdown, temperature locking, MCU-controlled calibration, and low tip-to-ground impedance/voltage for ESD-sensitive work. It uses the ATTEN T900 / 900M Series soldering tips.
| Parameter | Specification |
|---|---|
| Brand | ATTEN |
| Model | ST-80 |
| Product Type | Intelligent Digital Soldering Station |
| Power Consumption | 80W |
| Input Voltage | AC 100/110/120V or 220/230/240V, 50/60Hz |
| Heater Voltage | 28V AC |
| Temperature Range | 150°C – 480°C |
| Temperature Accuracy | ±10°C |
| Temperature Stability | ±2°C (Still Air, No Load) |
| Temperature Offset Range | ±50°C / ±90°F |
| Display | LCD Display |
| Temperature Presets | 3 Programmable Presets |
| Automatic Standby | 1–120 Minutes |
| Standby Temperature | 150°C |
| Automatic Shutdown | 1–120 Minutes |
| Temperature Lock | Yes |
| Temperature Calibration | MCU Controlled |
| Heating Element | High-Performance Quad-Wire Heater |
| Soldering Handle | SP-80 |
| Compatible Tip Series | ATTEN T900 / 900M Series |
| Standard Tip | T900-B |
| Tip-to-Ground Impedance | <2Ω |
| Tip-to-Ground Voltage | <2mV |
| Dimensions | 168 × 110 × 95 mm |
| Net Weight | Approx. 2.36 kg |
| Application Area | Electronics Assembly, Maintenance & Rework |
