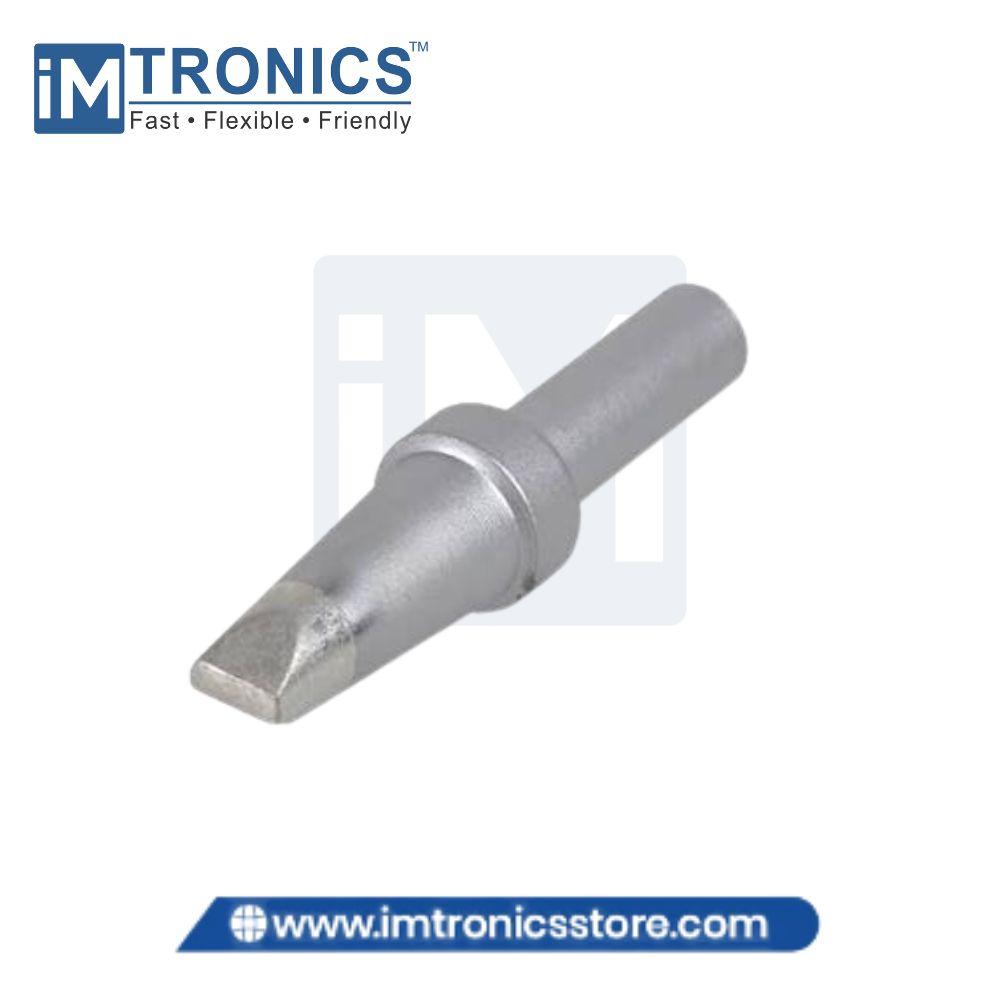

500-5D is a D-Type / chisel soldering tip from the 500 Series lead-free tip range. It features a 5.0 mm wide × 2.0 mm thick working profile, providing a broad contact area for efficient heat transfer. It is suitable for thick terminals, large PCB pads, connectors, heavy leads, and other high thermal-mass solder joints.
| Parameter | Specification |
|---|---|
| Brand | Generic |
| Model / Part No. | 500-5D |
| Product Type | Soldering Tip / Bit |
| Tip Series | 500 |
| Tip Shape | D-Shape |
| Tip Width | 5.0 mm |
| Tip Thickness | 2.0 mm |
| Tip Section Length | Approx. 21 mm |
| Series Type | Lead-Free Soldering Tip |
| Compatible Stations | BAKON BK3300L, BK3300A & BK3600 |
| Other Compatibility | Quick 205 & Compatible 500-Series Stations |
| Installation Type | Replaceable Soldering Tip |
| Primary Function | Heavy-Duty / High-Heat Soldering |
| Suitable For | Medium-to-Large Solder Joints |
| Typical Usage | Large PCB Pads, Thick Terminals, Connectors & Heavy Leads |
| Application Area | Electronics Assembly, Repair & PCB Rework |
