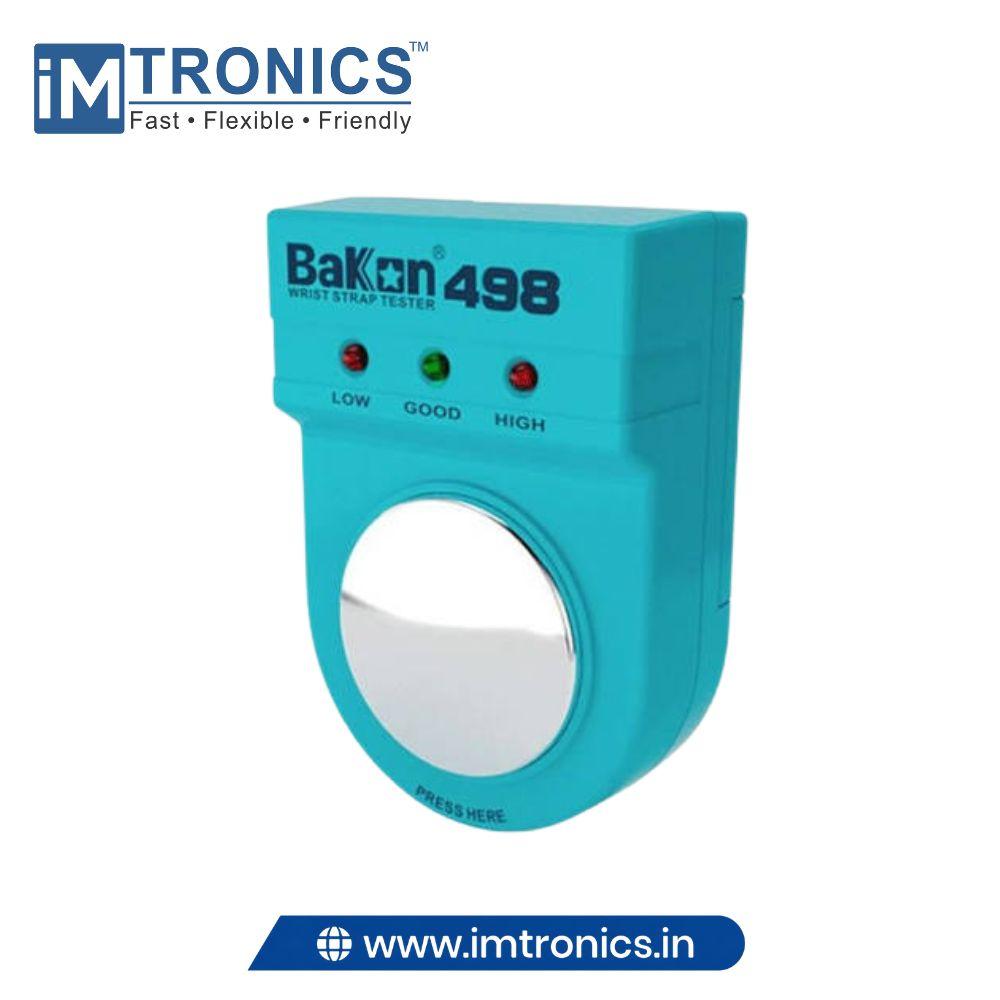

Wrist Band Tester BK-498

BAKON BK-498 ESD Wrist Strap Tester is a compact portable tester designed to quickly check the operating condition of an ESD wrist strap and its grounding path. The operator connects the wrist strap and presses the metal test button; the unit indicates whether the measured resistance is LOW, GOOD/PASS, or HIGH. It operates from a 9V battery, making it convenient for ESD workstations and electronics production environments.

• Brand: BAKON
• Model: BK-498
• Designed for ESD wrist strap testing.
• Battery-powered portable design.
• Metal push-button testing method.
• Checks wrist strap system resistance.
• LOW: below approximately 0.8 MΩ.
• GOOD: approximately 0.8–9 MΩ.
• HIGH: above approximately 9 MΩ.
• LED status indication.
• Suitable for regular operator wrist-strap checks.
• Useful for ESD-controlled electronics workstations.
• Compact size for benchtop or portable use.

Specifications

Applications

• ESD workstations
• Electronics manufacturing
• SMT production areas
• PCB assembly
• Electronics repair
• R&D laboratories
• Quality-control areas
• ESD wrist strap verification
• Operator grounding checks
• Electronics service centres
