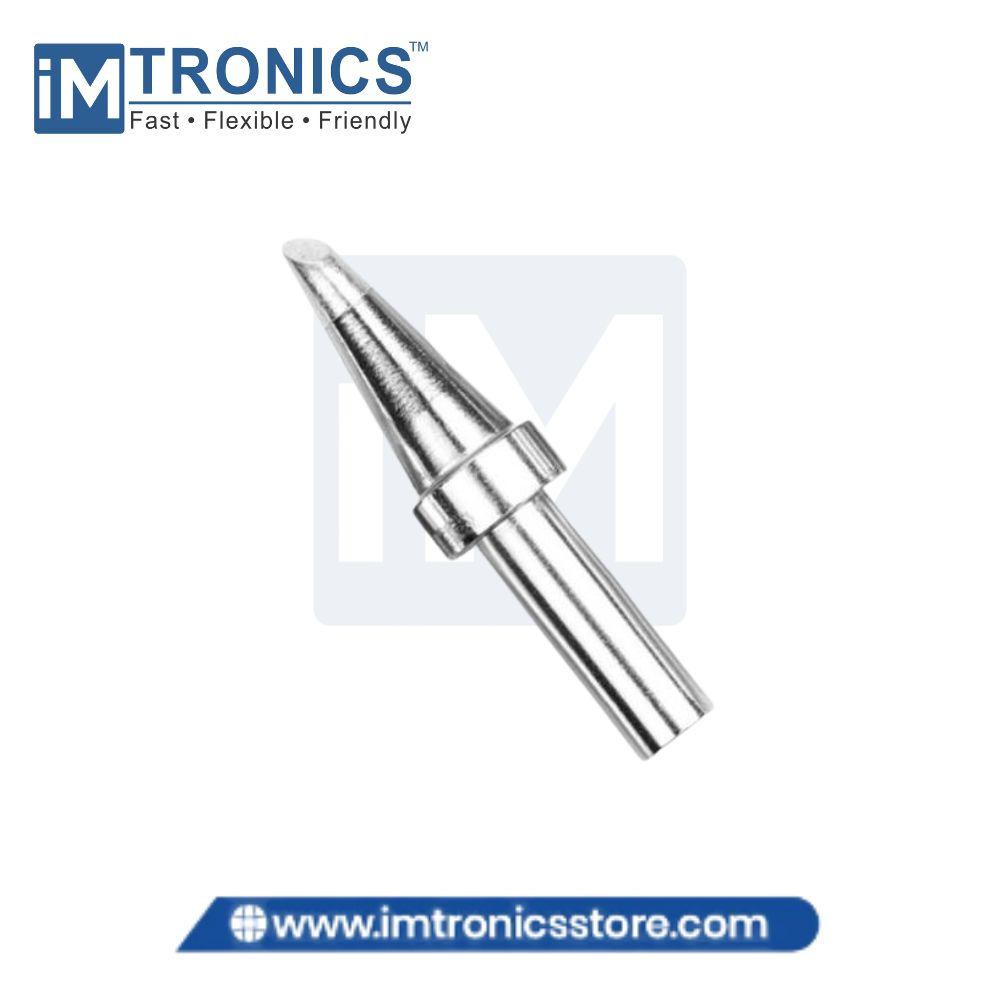

500-3C is a 3.0 mm C-Type / bevel soldering tip from the 500 Series. Its angled working face provides good heat transfer and solder flow, making it suitable for PCB pads, component leads, terminals, connectors, and general electronics rework. A 3.0 mm tip width, 45° angle, approximately 19.5 mm working section, and 21 mm tip section length.
| Parameter | Specification |
|---|---|
| Brand | Generic |
| Model / Part No. | 500-3C |
| Product Type | Soldering Tip / Bit |
| Tip Series | 500 |
| Tip Shape | C-Shape |
| Tip Width | 3.0 mm |
| Working Section Length | Approx. 19.5 mm |
| Tip Section Length | Approx. 21 mm |
| Series Type | Lead-Free Soldering Tip |
| Compatible Stations | BAKON BK3300L, BK3300A & BK3600 |
| Other Compatibility | Quick 205 & Compatible 500-Series Stations |
| Installation Type | Replaceable Soldering Tip |
| Primary Function | General-Purpose & High-Heat Soldering |
| Suitable For | Medium Solder Joints |
| Typical Usage | PCB Pads, Component Leads, Terminals & Connectors |
| Application Area | Electronics Assembly, Repair & PCB Rework |
