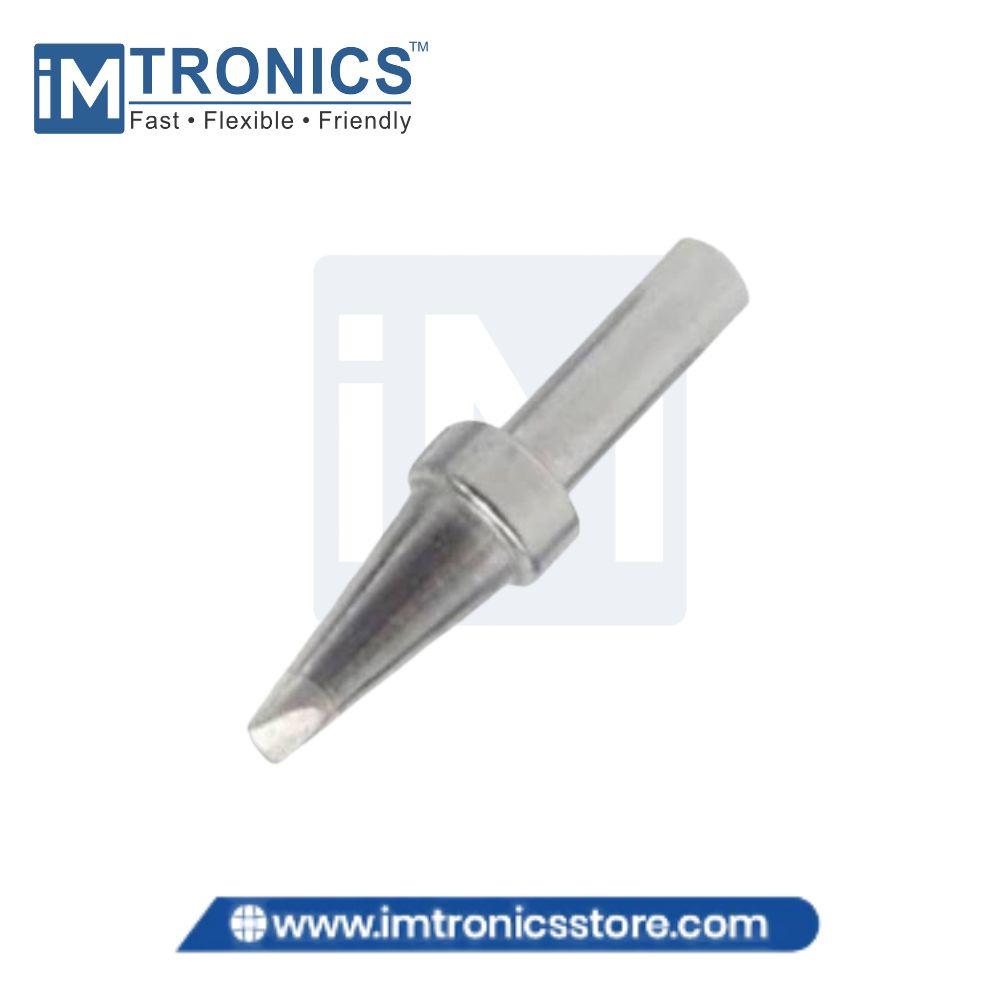

500-3.2D is a D-Type / chisel soldering tip from the 500 Series lead-free tip range. Its 3.2 mm wide working face provides efficient heat transfer and is suitable for PCB pads, terminals, connectors, component leads, and medium-to-large solder joints. Shows a 3.2 mm width, 1.2 mm thickness, approximately 18.5 mm working section, and 21 mm tip section length.
| Parameter | Specification |
|---|---|
| Brand | Generic |
| Model / Part No. | 500-3.2D |
| Product Type | Soldering Tip / Bit |
| Tip Series | 500 |
| Tip Shape | D-Shape |
| Tip Width | 3.2 mm |
| Tip Thickness | Approx. 1.2 mm |
| Working Section Length | Approx. 18.5 mm |
| Tip Section Length | Approx. 21 mm |
| Series Type | Lead-Free Soldering Tip |
| Compatible Stations | BAKON BK3300L, BK3300A & BK3600 |
| Other Compatibility | Quick 205 & Compatible 500-Series Stations |
| Installation Type | Replaceable Soldering Tip |
| Primary Function | General & High-Heat Soldering |
| Suitable For | Medium-to-Large Solder Joints |
| Typical Usage | PCB Pads, Component Leads, Terminals & Connectors |
| Application Area | Electronics Assembly, Repair & PCB Rework |
