SKU code: #IMT00816
Category Name: SMT Spare
₹4,000
You save ₹400(10% off)
Inclusive of all taxes
₹4,000
You save ₹400(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

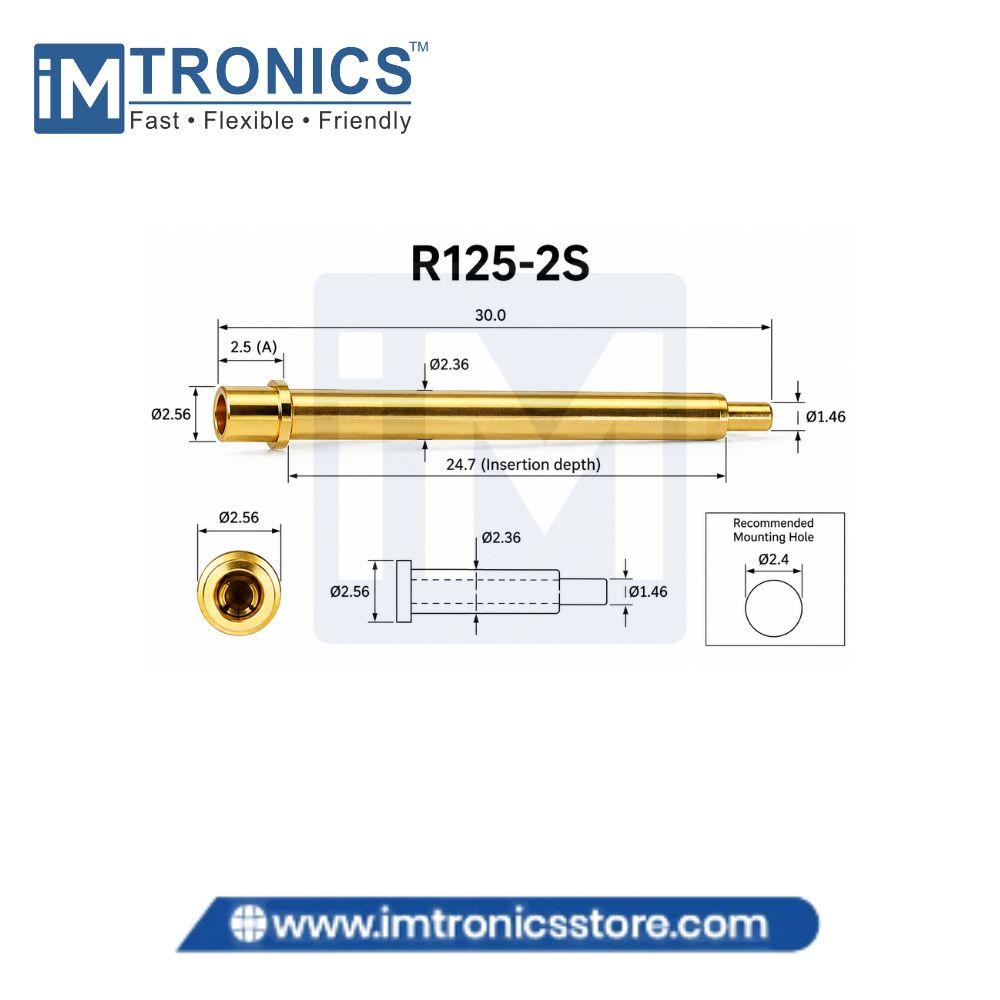

The R125-2S is a solder-type receptacle designed for P125-series spring test probes/pogo pins. It provides a replaceable mounting socket in PCB test fixtures, allowing the probe to be changed without rebuilding the wiring or test jig. It is commonly used for ICT, FCT, programming, and production testing.
| Parameter | Specification |
|---|---|
| Product Name | Pogo Pin Receptacle |
| Model | R125-2S |
| Product Type | Spring Test Probe Receptacle |
| Compatible Probe Series | P125 Series |
| Connection Type | Solder Type |
| Overall Length | 30 mm |
| Outer Diameter | 2.36 mm |
| Insertion Depth | Approx. 24.7 mm |
| Recommended Mounting Hole | Approx. 2.4 mm |
| Contact Resistance | 50 mΩ |
| Maximum Current | 3 A |
| Base Material | Phosphor Bronze |
| Surface Finish | Gold Plated |
| Application | PCB Testing & Test Fixtures |
| Suitable For | ICT, FCT & Electronics Testing Jigs |
₹4,000
You save ₹400(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
