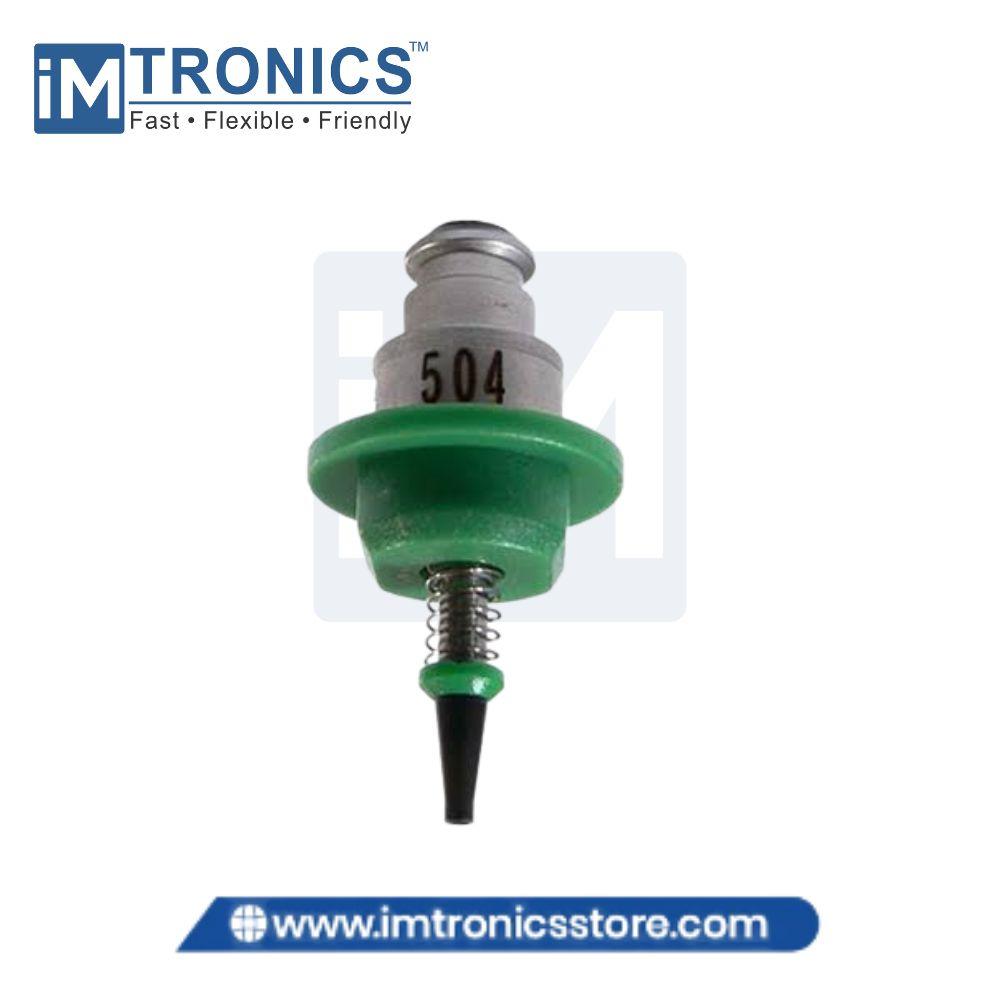

The JUKI 504 Nozzle is a vacuum pick-up nozzle used with JUKI SMT pick-and-place machines for accurate component handling and placement. The commonly listed assembly part number is E3603-729-0A0, with E3656-729-000 for the nozzle tip/slider. It is part of the JUKI 500-series nozzle family.
| Parameter | Specification |
|---|---|
| Brand | JUKI |
| Product Name | JUKI Nozzle 504 |
| Product Type | SMT Pick & Place Nozzle |
| Nozzle Number | 504 |
| Tip Outer Diameter | Ø1.5–1.6 mm |
| Tip Inner Diameter | Ø0.9–1.0 mm |
| Operating Method | Vacuum Pick-Up |
| Machine Compatibility | JUKI SMT Pick & Place Machines |
| Compatible Series | JUKI KE Series / FX Series |
| Primary Function | Component Pick-Up & Placement |
| Application | SMT PCB Assembly |
