SKU code: #IMT00797
Category Name: Screwdriver and Accessories
₹17,055
You save ₹1,706(10% off)
Inclusive of all taxes
₹17,055
You save ₹1,706(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

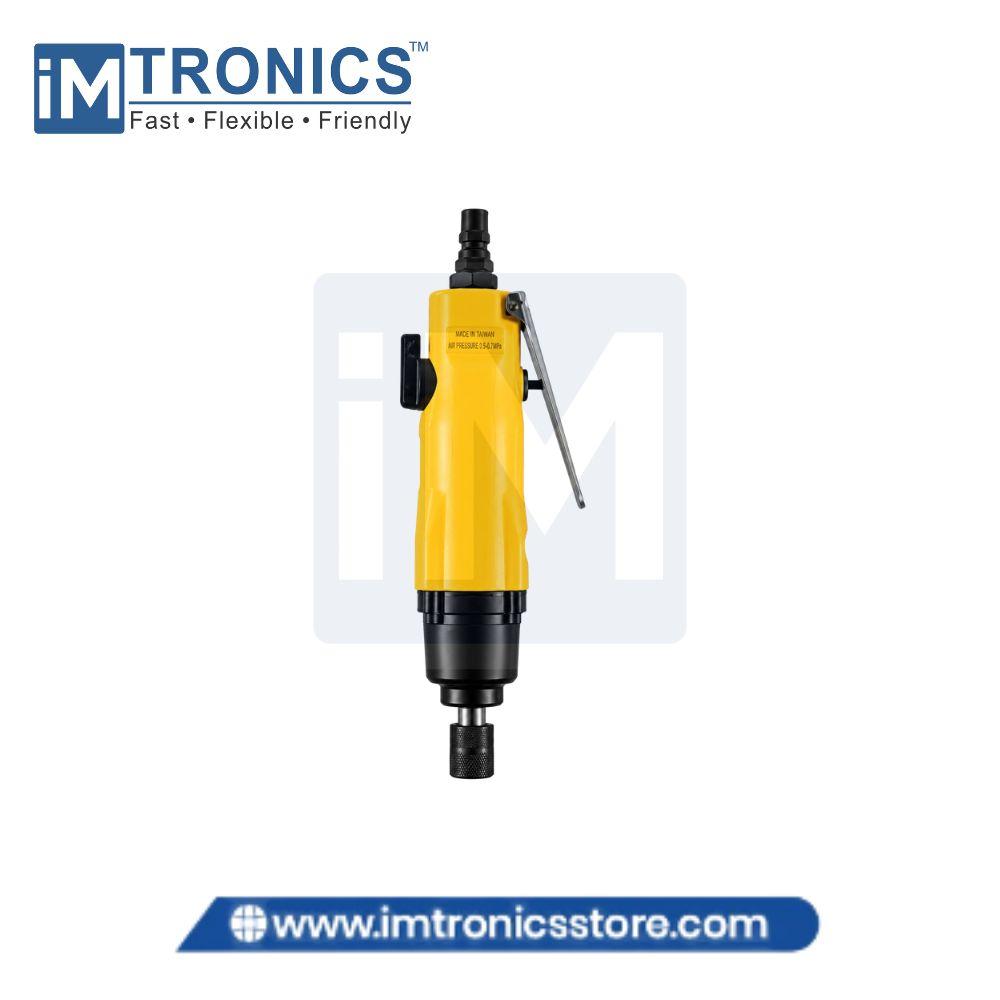

The DB-SD-Q40PB is a 1/4-inch push-to-start, auto shut-off pneumatic screwdriver designed for controlled and repetitive screw-fastening operations. Its automatic shut-off mechanism helps provide consistent fastening torque, making it suitable for electronics, appliance, component, and industrial assembly lines.
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic / Air Screwdriver |
| Model | DB-SD-Q40PB |
| Drive / Hex Shank Size | 1/4 Inch |
| Start Mechanism | Push-to-Start |
| Clutch Type | Auto Shut-Off |
| Free Speed | 1,000 RPM |
| Torque Range | 5–30 kgf·cm |
| Mechanical Screw Capacity | M2.8–M5.0 |
| Self-Tapping Screw Capacity | M2.2–M4.0 |
| Overall Length | 180 mm (7 Inch) |
| Diameter | 34 mm |
| Operating Air Pressure | 6 kg/cm² |
| Air Consumption | 0.28 m³/min |
| Air Inlet | 1/4 Inch PT/NPT |
| Air Hose I.D. | 1/4 Inch |
| Net Weight | Approx. 0.54 kg |
| Power Source | Compressed Air |
| Application | Precision & Repetitive Screw Fastening |
wkyx.jpg)
wyzi.jpg)
lbwm.jpg)
₹17,055
You save ₹1,706(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .
