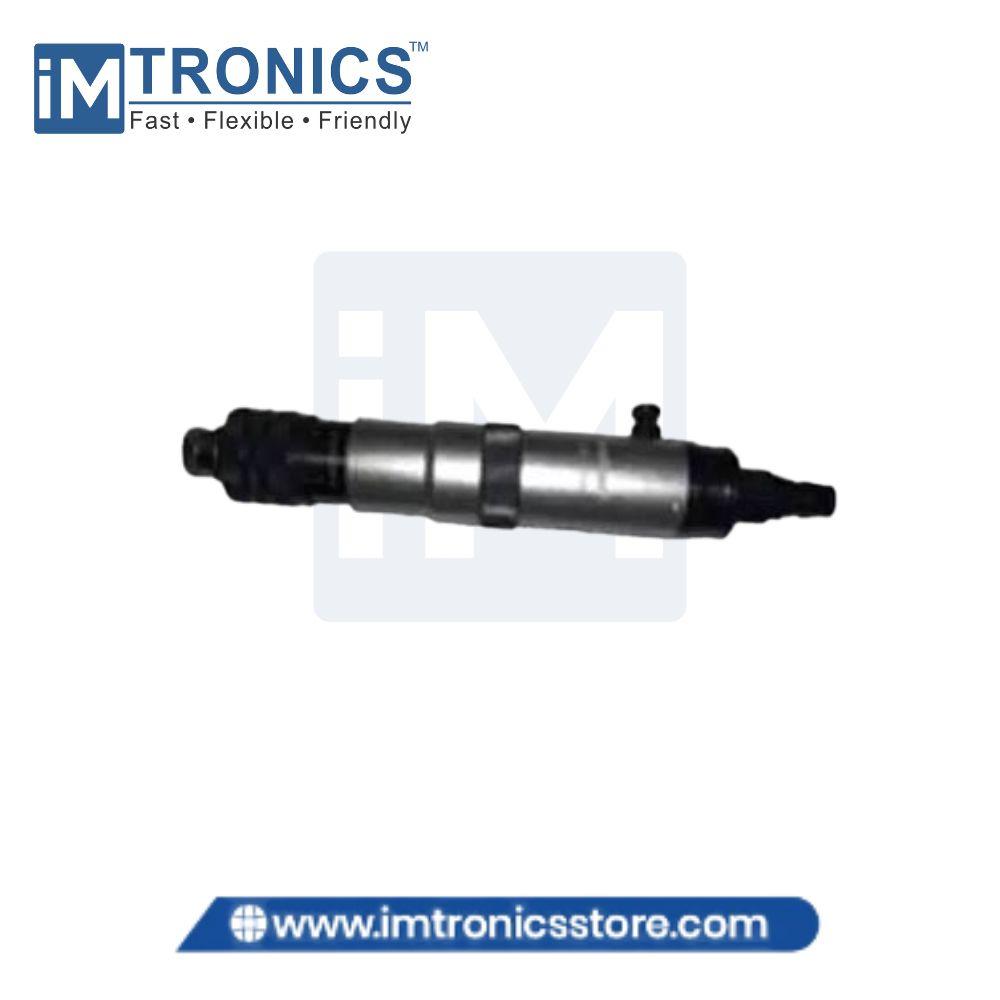

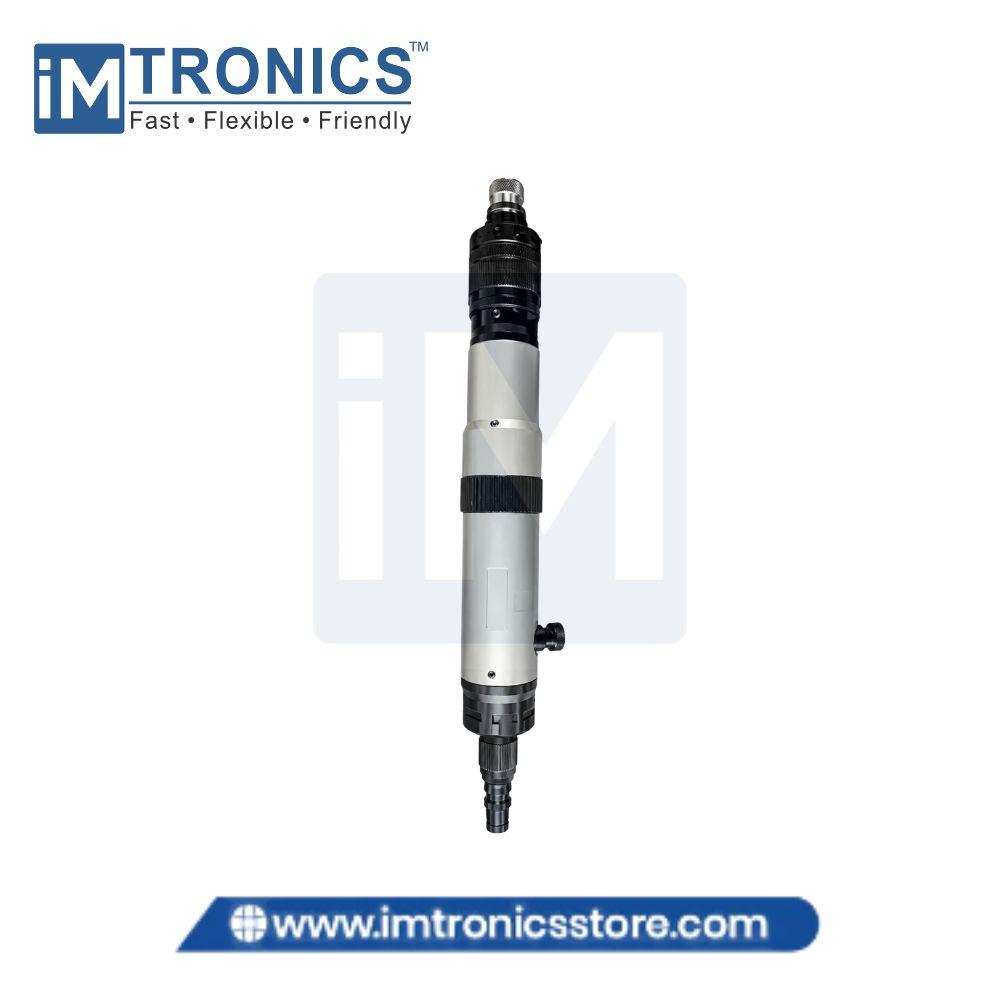

The DB-SD-501RY is a pneumatic external-type adjustable clutch air screwdriver designed for controlled and repetitive screw fastening. It features a push-to-start shut-off mechanism and adjustable torque, making it suitable for assembly-line applications where consistent fastening is required.
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic / Air Screwdriver |
| Model | DB-SD-501RY |
| Product Type | External Type Adjustable Clutch Air Screwdriver |
| Hex Shank Size | 1/4 Inch |
| Start Mechanism | Push-to-Start |
| Clutch Type | External Adjustable Clutch |
| Shut-Off Function | Yes |
| Screw / Bolt Capacity | 2.5–4.0 mm |
| Free Speed | 1,000 RPM |
| Torque Range | 3–17 kgf·cm |
| Overall Length | 230 mm (9 Inch) |
| Air Inlet | 1/4 Inch PT/NPT |
| Air Hose I.D. | 1/4 Inch |
| Average Air Consumption | 3 CFM / 85 L/min |
| Net Weight | Approx. 0.67 kg / 1.50 lb |
| Power Source | Compressed Air |
| Application | Precision & Repetitive Screw Fastening |
