Zcut-9 Automatic Tape Dispenser

SKU code: #IMT00293

Category Name: SMT Consumables

₹11,250 (10% off)

MRP

₹12,500

You save ₹1,250(10% off)

Inclusive of all taxes

₹11,250 (10% off)

MRP

₹12,500

You save ₹1,250(10% off)

Inclusive of all taxes

Available Units

Available Stocks : 6

Estimate delivery times: 5-7 days .

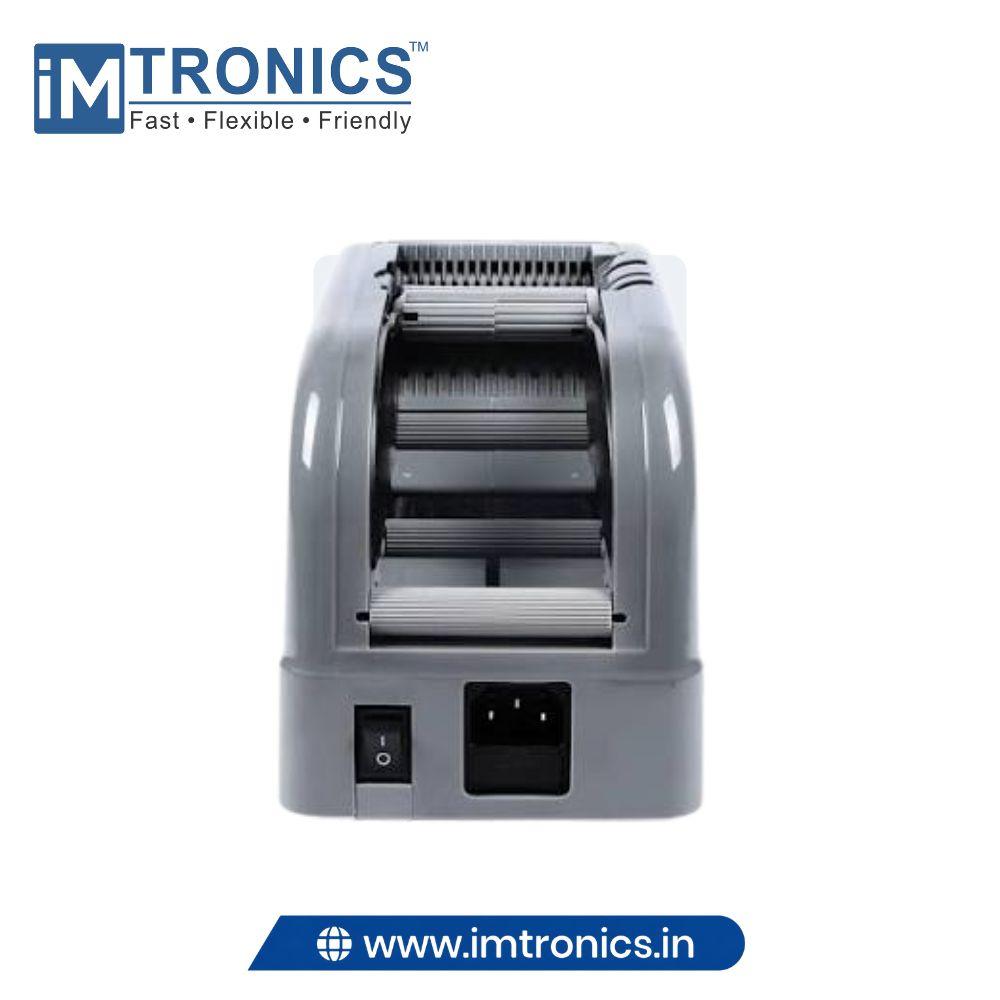

Zcut-9 Automatic Tape Dispenser

ZCUT-9 is a microcomputer-controlled automatic tape dispenser designed for fast and consistent cutting of adhesive and non-adhesive tapes. It supports automatic and manual operation, programmable cutting lengths, and memory for up to six preset lengths. The machine can handle tape widths from 6–60 mm and cutting lengths from 5–999 mm, making it suitable for electronics assembly, packaging, production lines, and general industrial use.

Specifications

Parameter	Specification
Model	ZCUT-9
Product Type	Automatic / Microcomputer Tape Dispenser
Operation Mode	Automatic & Manual
Display	3-Digit LED
Tape Width Range	6–60 mm
Cutting Length Range	5–999 mm
Feeding Speed	Approx. 200 mm/sec
Maximum Roll Diameter	300 mm
Preset Length Memory	Up to 6 Different Lengths
Tape Core Requirement	No Specific Bobbin / Core Required
Dual Tape Capability	Supports 2 Rolls Simultaneously
Body Material	Anti-Static ABS
Power Supply	AC 110V / 60Hz or AC 220V / 50Hz
Power Consumption	25W
Dimensions	116 × 140 × 213 mm (W × H × D)
Body Weight	Approx. 1.6–2.5 kg (Version Dependent)
Cutting Control	Microcomputer Controlled
Suitable Materials	Adhesive & Non-Adhesive Tapes
Primary Function	Automatic Tape Feeding & Cutting
Application Area	Electronics Assembly, Packaging & Industrial Production
