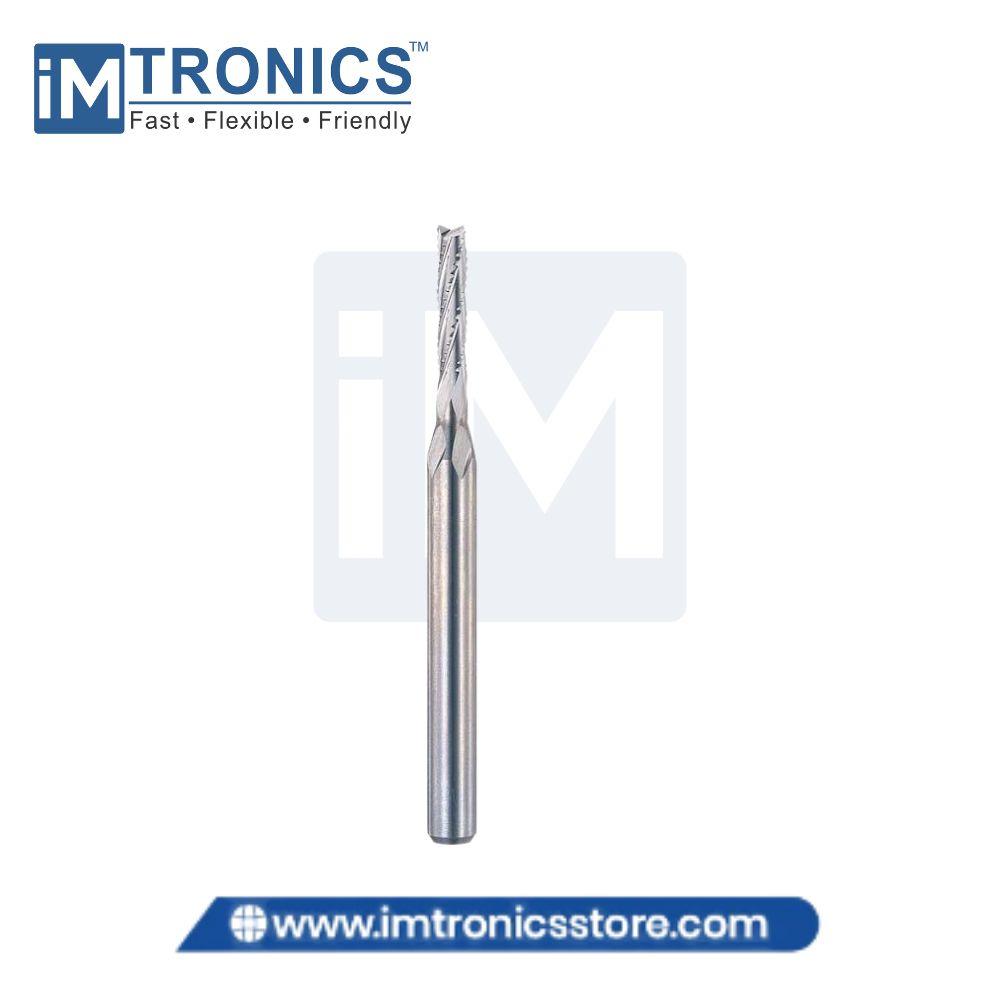

The PCB Router Bit 1.8mm (DC) is a precision diamond-cut tungsten carbide router bit designed for PCB routing, profiling, slotting, and depaneling. The DC (Diamond Cut) cross-cut geometry is suitable for FR4 and fiberglass-based PCB materials, providing efficient material removal and stable cutting during high-speed CNC routing.
| Parameter | Specification |
|---|---|
| Product Name | PCB Router Bit |
| Size | 1.8 mm |
| Cutting Type | DC (Diamond Cut) |
| Cutting Diameter | 1.8 mm |
| Shank Diameter | 3.175 mm (1/8 Inch) |
| Overall Length | Approx. 38.1 mm |
| Typical Cutting / Flute Length | Approx. 8.0 mm |
| Tool Material | Solid Tungsten Carbide |
| Cutting Geometry | Diamond Cut / Cross-Cut |
| Machine Compatibility | CNC / Automatic PCB Router Machine |
| Suitable Material | FR4, Fiberglass & General PCB Materials |
| Operation | Routing, Profiling, Slotting & Depaneling |
| Application | PCB Cutting & Board Separation |
