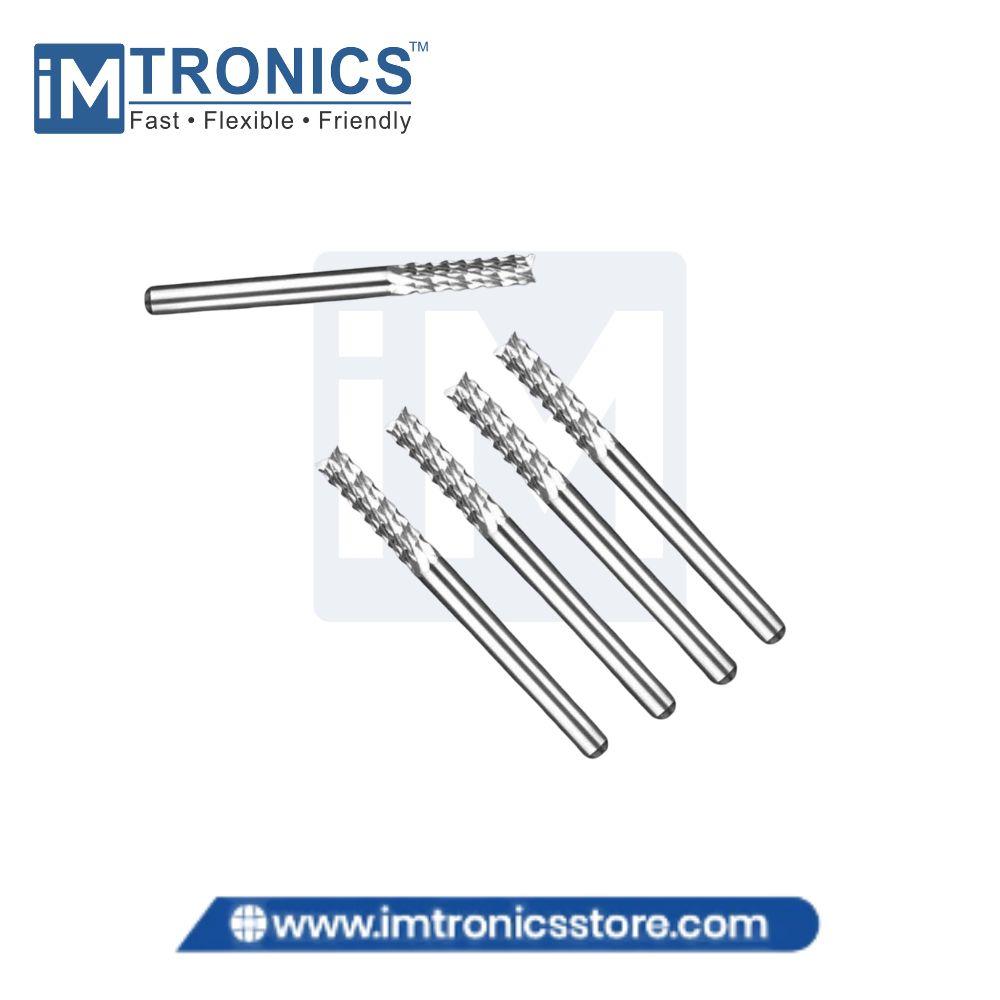

The PCB Router Bit 1.6mm (DC) is a precision diamond-cut carbide router bit used for PCB depaneling, profiling, slotting, and contour cutting. The DC (Diamond Cut) flute pattern is commonly used for FR4 and other PCB laminate materials because it provides stable cutting performance and good edge quality during high-speed routing.
| Parameter | Specification |
|---|---|
| Product Name | PCB Router Bit |
| Size | 1.6 mm |
| Cutting Type | DC (Diamond Cut) |
| Cutting Diameter | 1.6 mm |
| Shank Diameter | 3.175 mm (1/8 Inch) |
| Typical Overall Length | Approx. 38.1 mm |
| Typical Cutting / Flute Length | Approx. 8 mm |
| Tool Material | Solid Tungsten Carbide |
| Cutting Geometry | Diamond Cut / Cross-Cut |
| Machine Compatibility | CNC / Automatic PCB Router Machine |
| Suitable Material | FR4 & General PCB Materials |
| Operation | Routing, Profiling, Slotting & Depaneling |
| Application | PCB Cutting & Board Separation |
