SKU code: #IMT00785
Category Name: SMT Consumables
₹2,833
You save ₹283(10% off)
Inclusive of all taxes
₹2,833
You save ₹283(10% off)
Inclusive of all taxes
Estimate delivery times: 5-7 days .

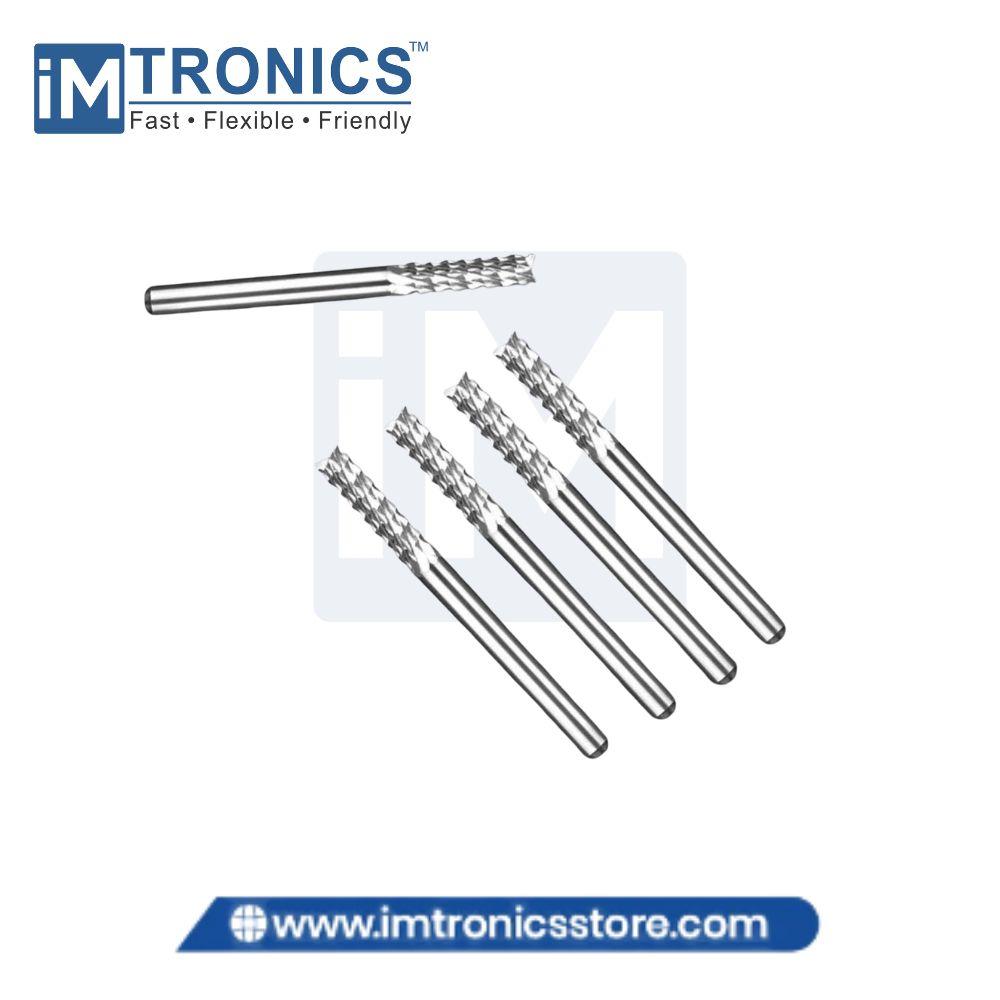

The PCB Router Bit 1.0mm (UC) is a precision carbide cutting tool designed for PCB routing, profiling, slotting, and depaneling. UC (Up Cut) geometry helps move cutting debris upward and away from the cutting area, supporting efficient chip evacuation during routing. 1.0 mm up-cut carbide router bits are commonly available with a 3.175 mm (1/8") shank and approximately 38 mm overall length.
| Parameter | Specification |
|---|---|
| Product Name | PCB Router Bit |
| Size | 1.0 mm |
| Cutting Type | UC (Up Cut) |
| Cutting Diameter | 1.0 mm |
| Shank Diameter | 3.175 mm (1/8 Inch) |
| Typical Overall Length | Approx. 38 mm |
| Typical Cutting Length | Approx. 4–6 mm |
| Tool Material | Solid Carbide |
| Cutting Geometry | Up-Cut |
| Machine Compatibility | CNC / Automatic PCB Router Machine |
| Suitable Material | FR4 & Composite PCB Materials |
| Operation | Routing, Profiling, Slotting & Depaneling |
| Application | PCB Cutting & Board Separation |
