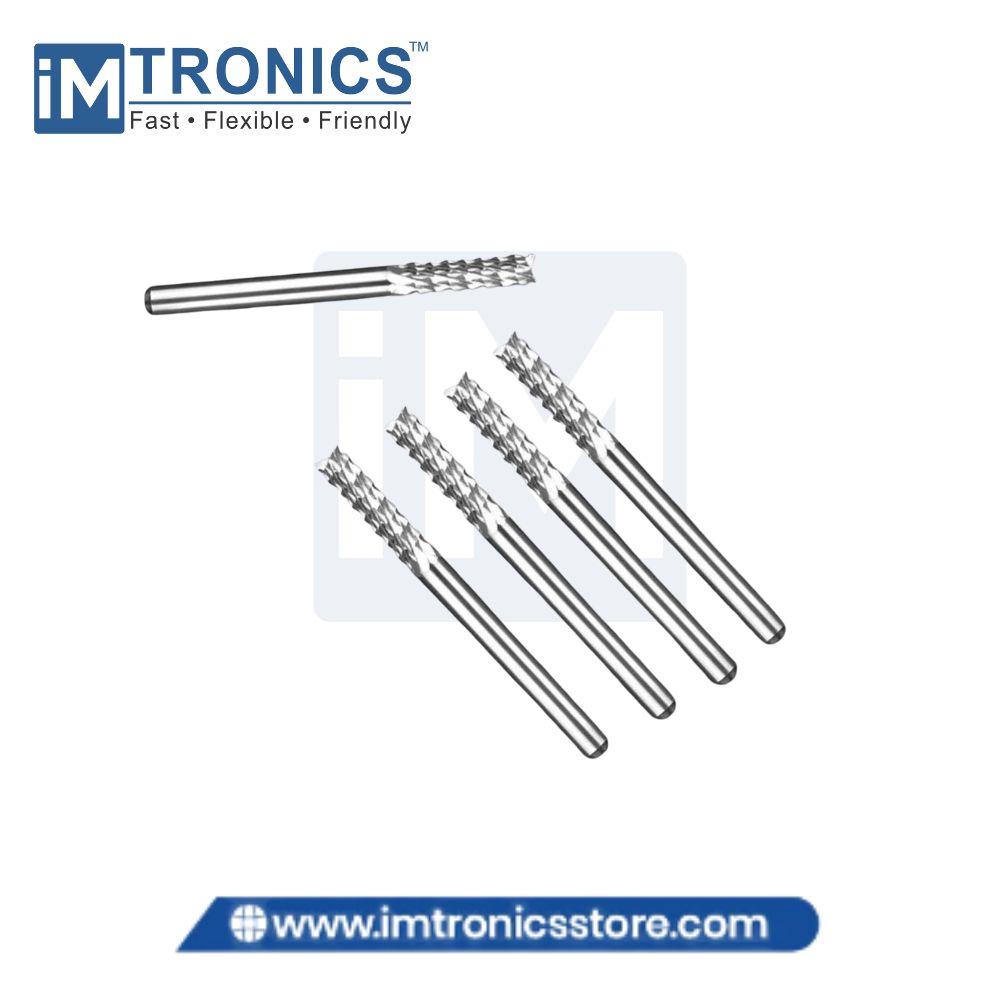

The PCB Router Bit 0.8mm (UC) is a precision up-cut carbide router bit designed for fine PCB routing, slotting, profiling, and depaneling. The UC (Up Cut) geometry directs cutting debris upward and supports efficient chip evacuation. Up-draft PCB router designs are available from 0.8 mm diameter, typically using a 3.175 mm shank and 38.1 mm overall length.
| Parameter | Specification |
|---|---|
| Product Name | PCB Router Bit |
| Size | 0.8 mm |
| Cutting Type | UC (Up Cut) |
| Cutting Diameter | 0.8 mm |
| Shank Diameter | 3.175 mm (1/8 Inch) |
| Overall Length | 38.1 mm |
| Typical Cutting / Flute Length | Approx. 4.0 mm |
| Tool Material | Solid Carbide |
| Cutting Geometry | Up-Cut / Up-Draft |
| Machine Compatibility | CNC / Automatic PCB Router Machine |
| Suitable Material | PCB, FPCB & Similar Board Materials |
| Operation | Fine Routing, Profiling, Slotting & Depaneling |
| Application | PCB Cutting & Board Separation |
