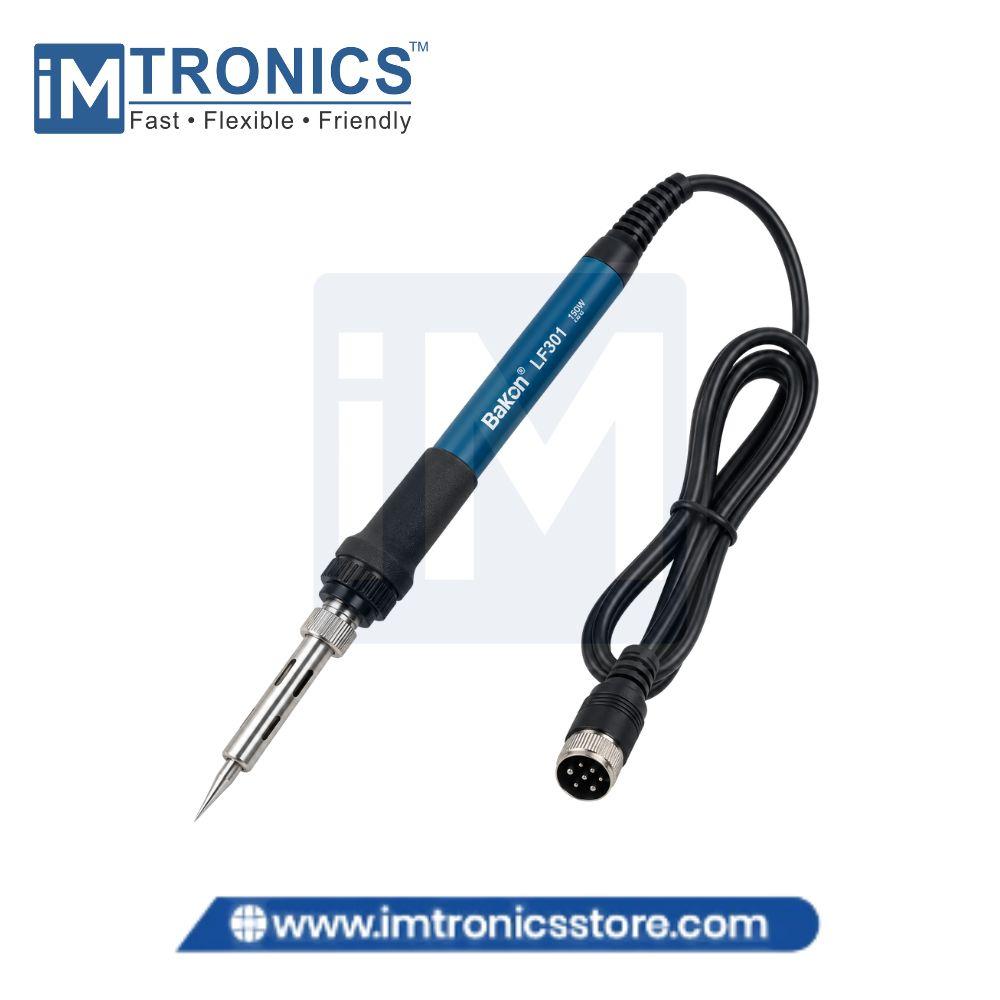

The BAKON LF301 is a 150W high-power soldering handpiece designed for professional soldering stations such as the BAKON BK3600 and compatible BK3300-series systems. It uses the VH300 heating element with 500M series soldering tips, providing rapid heating and strong thermal recovery for demanding soldering applications. BAKON lists the LF301 with a 1.7 m cable and high-frequency heating configuration.
| Parameter | Specification |
|---|---|
| Brand | BAKON |
| Model | LF301 |
| Product Type | High-Power Soldering Hand Piece |
| Power | 150W |
| Heating Element | VH300 |
| Heating Technology | High-Frequency / Eddy-Current Heating |
| Compatible Tip Series | 500M Series |
| Connector Type | 6-Pin Female Connector |
| Cable Length | 1.7 m |
| Temperature Control | Controlled by Soldering Station |
| Temperature Range | Up to 50–600°C (Station Dependent) |
| Temperature Stability | ±2°C (Station Dependent) |
| Tip-to-Ground Resistance | <2 Ω |
| Tip-to-Ground Potential | <2 mV |
| ESD Application | Suitable for ESD-Safe Soldering |
| Compatible Stations | BK3600, BK3300A & Compatible BAKON Stations |
| Primary Function | High-Power Temperature-Controlled Soldering |
| Application Area | Electronics Assembly, PCB Soldering, Repair & Rework |
