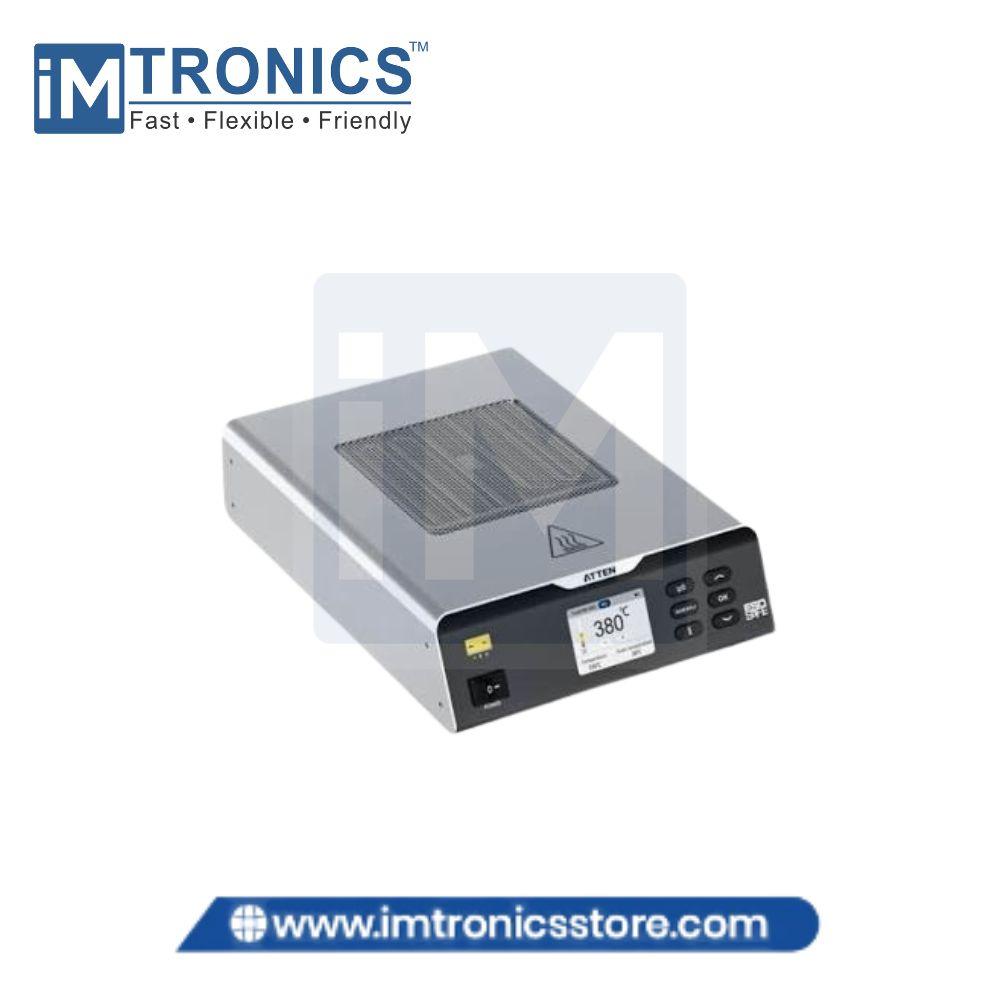

ATTEN ST-7500 Preheater

The ATTEN ST-7500 Preheating & Reflow Platform is an infrared ceramic preheater designed for PCB preheating and electronic rework processes requiring controlled, uniform heating. It provides 400 W heating power, a 50–500°C temperature range, and a 120 × 120 mm heating area. The unit also supports an external K-type thermocouple, RS485 communication, temperature locking, and three quick-temperature parameter groups.

Specifications

Parameter	Specification
Brand	ATTEN
Model	ST-7500
Product Type	Preheating & Reflow Platform
Input Voltage	AC 220–240 V, 50/60 Hz / AC 110–120 V, 60 Hz
Power	400 W (±10%)
Temperature Range	50°C–500°C
Heating Area	120 × 120 mm
Heating Material	Infrared Ceramic
External Temperature Sensor	K-Type Thermocouple Supported
Communication	RS485 Supported
Temperature Lock	Supported
Temperature Unit	°C / °F
Display	TFT Color Screen
Quick Parameters	3 Programmable Groups
Operating Environment	0°C–40°C, <85% RH
Dimensions	278 × 203 × 73 mm
Main Unit Weight	Approx. 2.4 kg
Application	PCB Preheating & Electronic Rework

Applications

PCB Preheating – Provides controlled heat before soldering or rework.
BGA/SMD Rework – Reduces thermal stress during component rework.
Desoldering Support – Preheats assemblies before component removal.
Soldering Support – Helps bring larger boards closer to process temperature.
Electronics Repair – Suitable for controlled PCB heating operations.
Reflow Processing – Supports small-scale controlled heating applications.
